Engine housing mounting parts for BMW 1500-2000CS 1500 (1962)

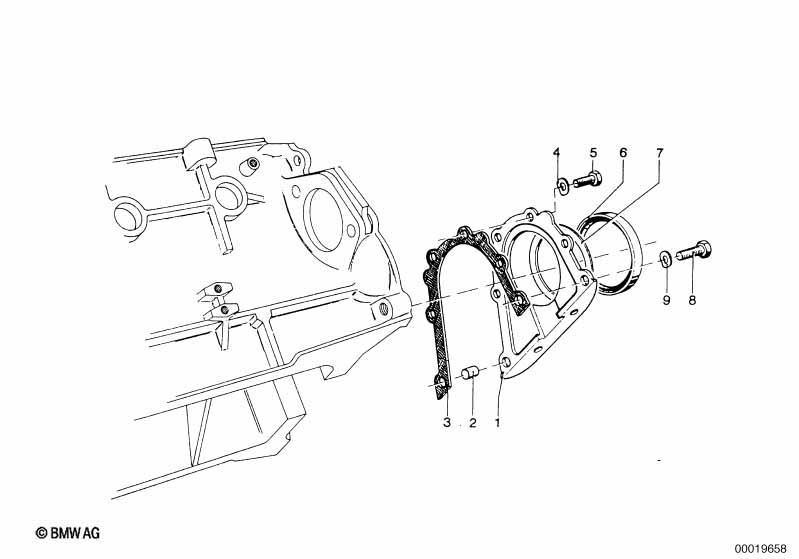

This Engine housing mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6 Loch Kurbelwelle | ||||||||||
| 01 | Cover | 1 | 02/1962 | 04/1972 | 11140604000 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X20-8.8-ZNS | 4 | 02/1962 | 04/1972 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 06 | Shaft seal | 1 | 02/1962 | 04/1972 | 11141255015 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | 1 | 02/1962 | 04/1972 | 11140604057 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1500 Engine housing mounting parts?
- This technical diagram illustrates the Engine housing mounting parts within the Engine group for the 1500-2000CS 1500 produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #11140604000).
- Which models use the hardware listed in this Engine housing mounting parts?
- The hardware and components featured in the Engine housing mounting parts are specific to the 1500-2000CS 1500 produced during 1962. These technical specifications ensure that parts like the Cover (11140604000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine housing mounting parts assembly?
- Each item in the Engine housing mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1500, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 11140604000 for the Engine section.
