Piston ring for BMW 1500-2000CS 1800 (1969)

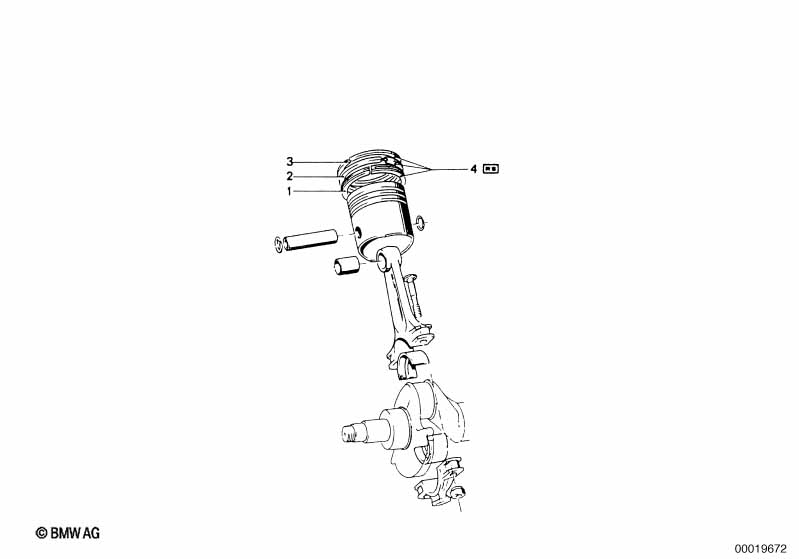

This Piston ring technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| H = 4,0mm | ||||||||||
| 01 | Oil ring | 88,97MM("0") | 44 | 09/1965 | 07/1976 | 11251274784 | ENDED | Shop at ECS Tuning | ||
| 01 | Oil ring | +0,25 | 4 | 09/1965 | 07/1976 | 11251274787 | ENDED | Shop at ECS Tuning | ||
| 01 | Oil ring | +0,50 | 4 | 09/1965 | 07/1976 | 11251274788 | ENDED | Shop at ECS Tuning | ||
| H = 2,5mm | ||||||||||
| 02 | Compress.ring | 89/81,4X2,5 F | 4 | 09/1963 | 02/1970 | 07119933795 | ENDED | Shop at ECS Tuning | ||
| H = 2,0mm | ||||||||||
| 02 | Compress.ring | 88,97MM("0") | 4 | 09/1965 | 07/1976 | 11251259311 | ENDED | Shop at ECS Tuning | ||
| 02 | Compress.ring | +0,25 | 4 | 09/1965 | 07/1976 | 11251259312 | ENDED | Shop at ECS Tuning | ||
| 02 | Compress.ring | +0,50 | 4 | 09/1965 | 07/1976 | 11251259313 | ENDED | Shop at ECS Tuning | ||
| H = 1,75mm | ||||||||||
| 03 | Rectangring | 88,97MM("0") | 4 | 09/1965 | 07/1976 | 11251251766 | ENDED | Shop at ECS Tuning | ||
| 03 | Rectangring | +0,25 | 4 | 09/1965 | 07/1976 | 11251251767 | ENDED | Shop at ECS Tuning | ||
| 03 | Rectangring | +0,50 | 4 | 09/1965 | 07/1976 | 11251251768 | ENDED | Shop at ECS Tuning | ||
| 04 | Repair kit piston rings | 88,97MM("0") | X | 09/1965 | 07/1976 | 11251261130 | $73.75 | ENDED | Shop at ECS Tuning | |
| 04 | Repair kit piston rings | 89,22MM(+0,25) | X | 09/1965 | 07/1976 | 11251261131 | $67.98 | Shop at ECS Tuning | ||
| 04 | Repair kit piston rings | 89,47MM(+0,50) | X | 09/1965 | 07/1976 | 11251261132 | $67.98 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Piston ring?
- This technical diagram illustrates the Piston ring within the Engine group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Oil ring (Part #11251274784).
- Which models use the hardware listed in this Piston ring?
- The hardware and components featured in the Piston ring are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Oil ring (11251274784) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Piston ring assembly?
- Each item in the Piston ring corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Oil ring by locating its position on the schematic, which then links to the official BMW part number 11251274784 for the Engine section.
