Dipstick for BMW 1500-2000CS 1500 (1962)

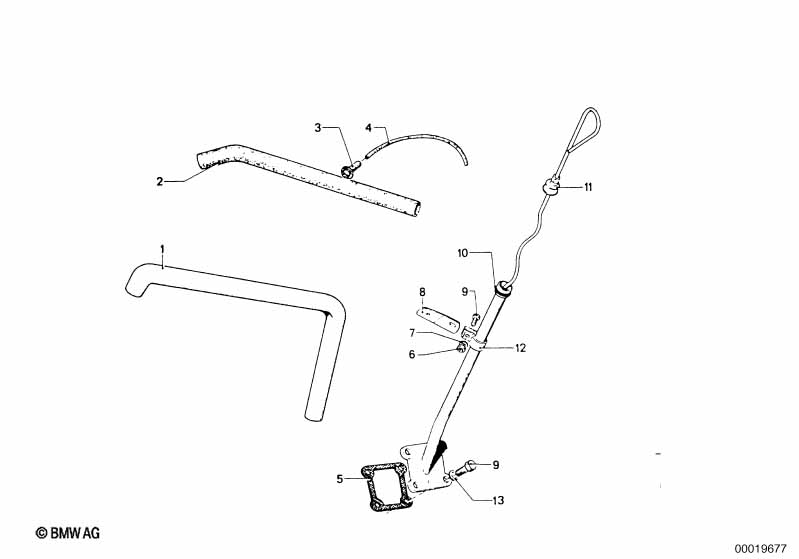

This Dipstick technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

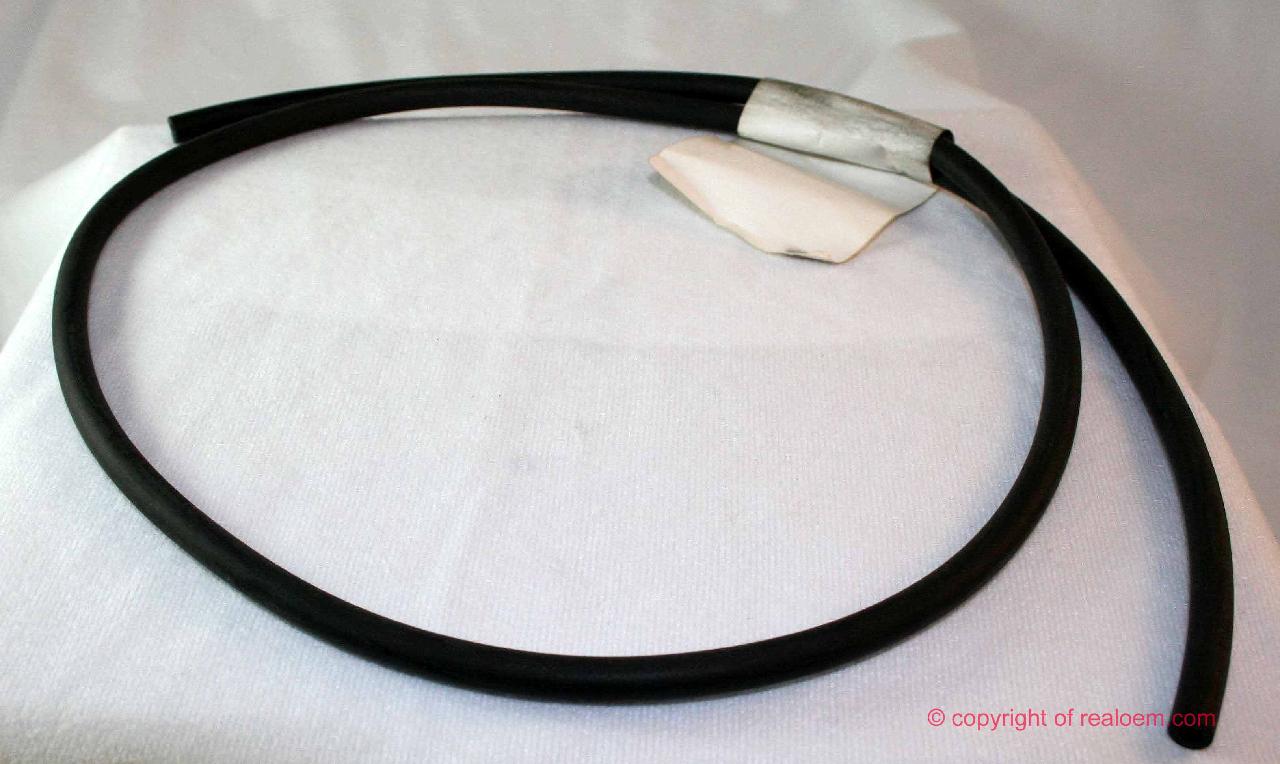

| 04 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 02/1962 | 08/1973 | 11430607165 | $1.43 | Shop at ECS Tuning | |||
| 06 | Hex nut | M6-8-ZNNIV SI | 1 | 02/1962 | 07/1977 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 07 | Washer | A6,4-200HV-ZNS3 | 1 | 02/1962 | 07/1977 | 07119903791 | $0.11 | Shop at ECS Tuning | ||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 02/1962 | 08/1973 | 07119904357 | $0.36 | Shop at ECS Tuning | ||
| 10 | O-ring | 1 | 02/1962 | 08/1973 | 11430607160 | $1.17 | ENDED | Shop at ECS Tuning | ||
| 11 | Dipstick | 1 | 02/1962 | 08/1973 | 11431255646 | ENDED | Shop at ECS Tuning | |||
| 13 | Spring washer | B6 | 4 | 02/1962 | 08/1973 | 07119933082 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
