Intake manifold for BMW 1500-2000CS 1500 (1964)

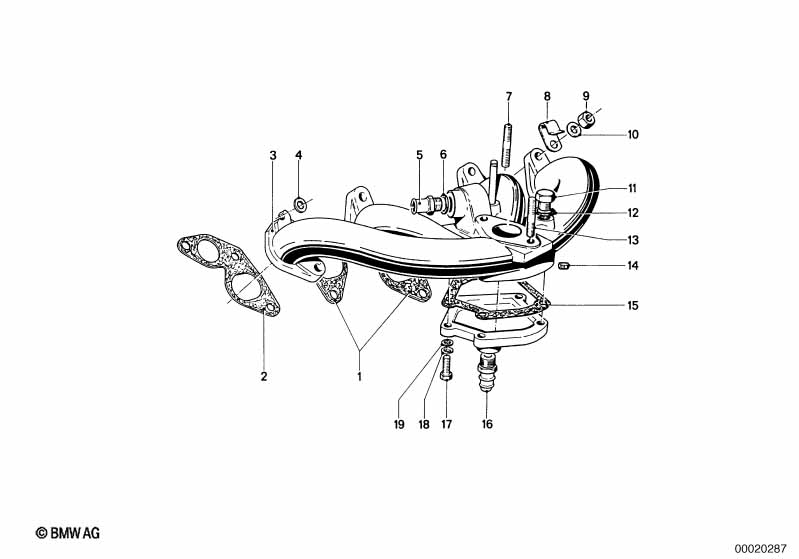

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 3 | 11611734436 | $1.85 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11611734435 | $2.40 | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | Connector | M18X1,5/18MM | 1 | 11120543338 | $20.06 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1 | 11610643018 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 8,4X16X1,6-ZNNV | 7 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Screw plug | M22X1,5 | 1 | 11121257379 | $2.70 | Shop at ECS Tuning | ||||
| 11 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 11117558632 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Plug | 1 | 11611250946 | ENDED | Shop at ECS Tuning | |||||
| 15 | Gasket Asbestos Free | 1 | 11619065693 | $6.07 | Shop at ECS Tuning | |||||
| 16 | BMW Classic | 1 | 04/1964 | 10/1967 | 34334550130 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex bolt | M6X25 | 5 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Wave washer | B6 | 5 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 19 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning |
