Intake manifold for BMW 1500-2000CS 1800ti (1964)

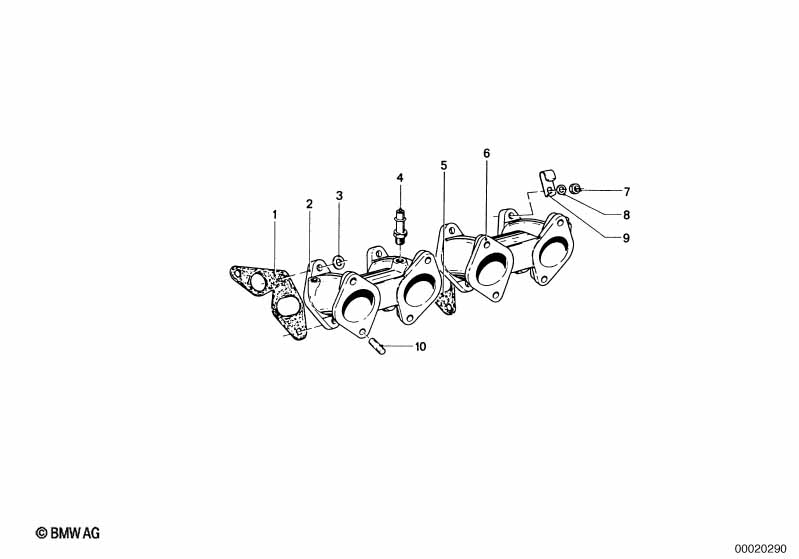

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 01/1964 | 12/1968 | 11611734435 | $2.40 | Shop at ECS Tuning | |||
| 02 | Intake manifold | VORN | 1 | 01/1964 | 12/1968 | 11611250594 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 3 | 01/1964 | 12/1968 | 11611734436 | $1.85 | Shop at ECS Tuning | |||
| 06 | Intake manifold | 1 | 01/1964 | 12/1968 | 11610643028 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | 8,4X16X1,6-ZNNV | 7 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 11610643019 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X25 | 8 | 07129903327 | $4.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
