Engine Suspension for BMW 1500-2000CS 1800 (1965)

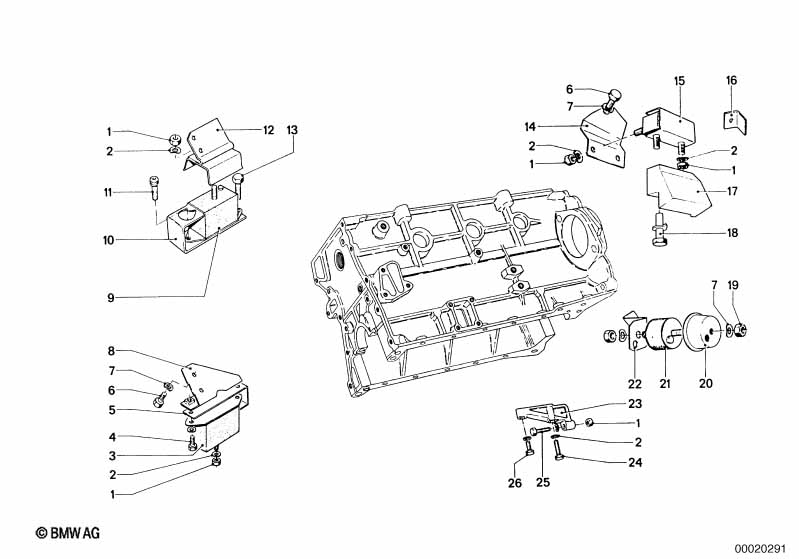

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1965.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8-8-ZNS3 | 6 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 01 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Rubber mounting right | 1 | 02/1962 | 09/1965 | 11819057213 | $38.81 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 02/1962 | 01/1972 | 07119904146 | $0.65 | Shop at ECS Tuning | ||
| 05 | Stopper | 1 | 02/1962 | 09/1965 | 11810696120 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M10X18-8.8-ZNS3 | 4 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Supporting bracket right | 1 | 02/1962 | 09/1965 | 11810696112 | ENDED | Shop at ECS Tuning | |||
| 14 | Supporting bracket left | 1 | 02/1962 | 09/1965 | 11810696100 | $9.71 | ENDED | Shop at ECS Tuning | ||
| 15 | Rubber mounting left | 1 | 02/1962 | 09/1965 | 11810696105 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Supporting bracket left | X | 02/1962 | 09/1965 | 11810696100 | $9.71 | ENDED | Shop at ECS Tuning | ||
| -- | Supporting bracket left | X | 02/1962 | 09/1965 | 11810696102 | ENDED | Shop at ECS Tuning | |||
| 17 | Balance weight | 1 | 02/1962 | 09/1965 | 11810696125 | ENDED | Shop at ECS Tuning | |||
| 18 | Nut | 2 | 02/1962 | 02/1970 | 11810696130 | ENDED | Shop at ECS Tuning | |||
| 23 | Support | 1 | 21110670055 | ENDED | Shop at ECS Tuning | |||||

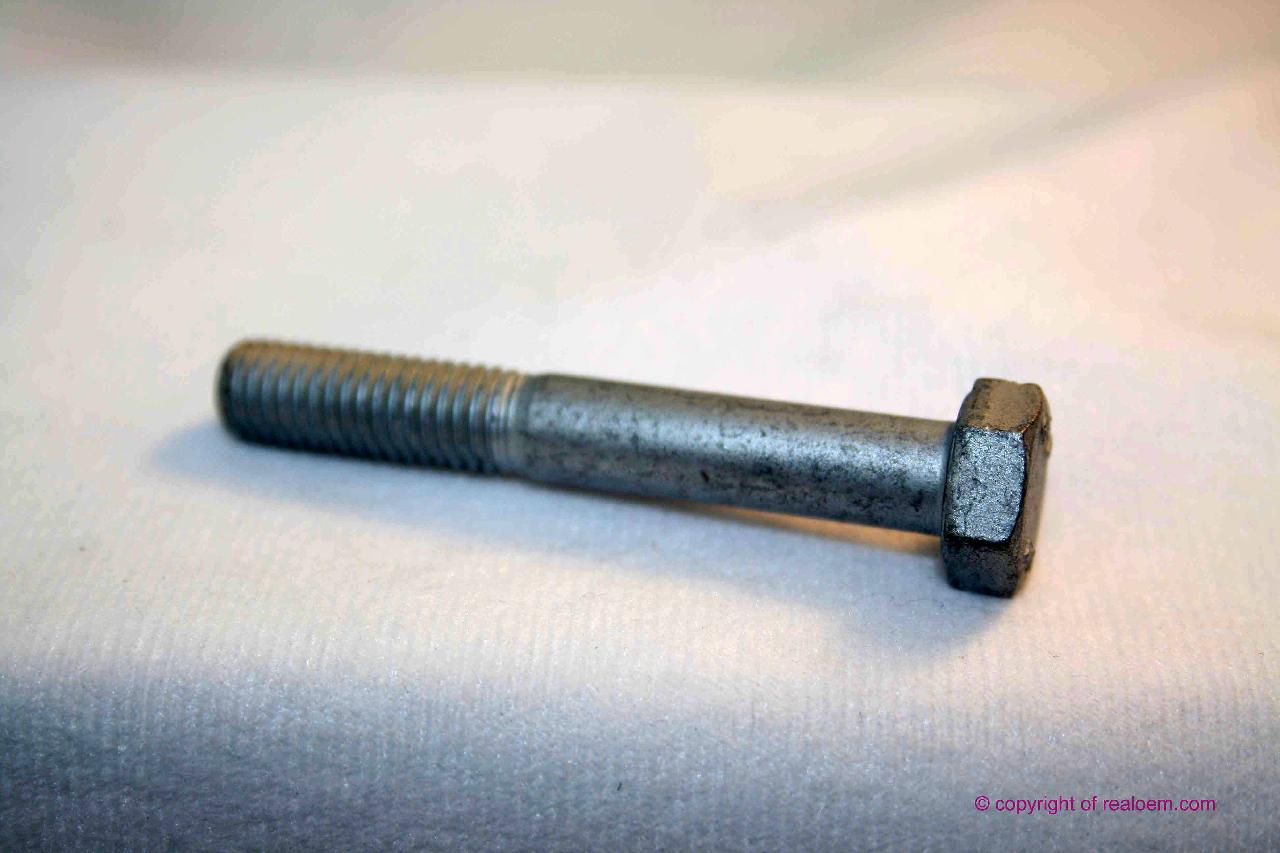

| 24 | Hex bolt | M8X55-8.8 | 1 | 02/1965 | 08/1971 | 07119902957 | $5.27 | Shop at ECS Tuning | ||
| 25 | Hex bolt | M8X70 | 1 | 02/1965 | 08/1971 | 07119912800 | $2.18 | Shop at ECS Tuning | ||
| 27 | Fillister-head screw | M8X35-10.9-ZNS3 | 1 | 02/1965 | 08/1971 | 07119906650 | $0.87 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
