Intake manifold for BMW 1500-2000CS 1600 (1964)

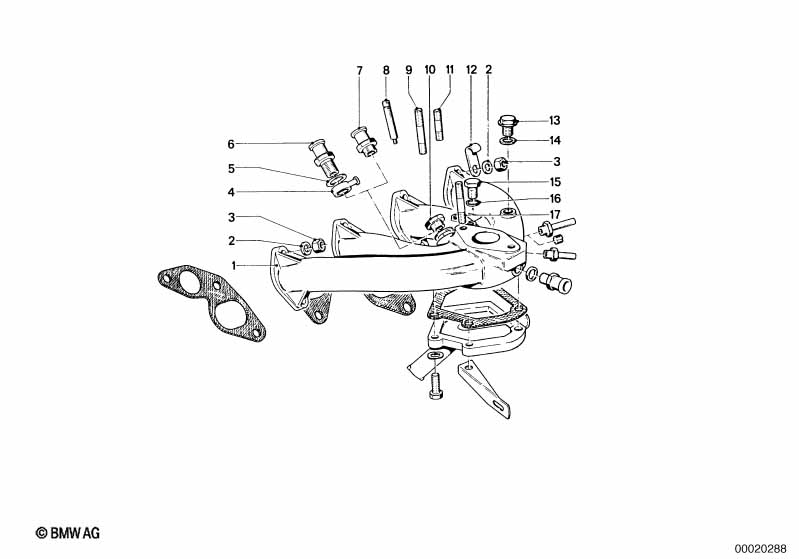

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1600. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Washer | 8,4X16X1,6-ZNNV | 7 | 07119907030 | Shop at ECS Tuning | |||||
| 02 | Washer | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Connector | M18X1,5/18MM | 1 | 09/1963 | 11/1968 | 11120543338 | $20.06 | Shop at ECS Tuning | ||
| 12 | Clamp | 1 | 11610643018 | ENDED | Shop at ECS Tuning | |||||
| 13 | Screw plug | M22X1,5 | 1 | 04/1964 | 04/1966 | 11121257379 | $2.70 | Shop at ECS Tuning | ||
| 13 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 04/1964 | 04/1966 | 11117558632 | Shop at ECS Tuning | |||
| 14 | Gasket ring | A22X27-AL | 1 | 04/1964 | 04/1966 | 07119963355 | $0.36 | Shop at ECS Tuning | ||
| 15 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A6.5X9.5-CU | 2 | 07119963034 | $0.70 | Shop at ECS Tuning | ||||
| according to choice | ||||||||||
| 17 | Stud bolt | M 8 X 45 | 2 | 07119908333 | ENDED | Shop at ECS Tuning | ||||
| 17 | Stud bolt | M8X45 | 2 | 07119908334 | ENDED | Shop at ECS Tuning | ||||
