Piston for BMW 2500-3.3Li 3.0Si (1971)

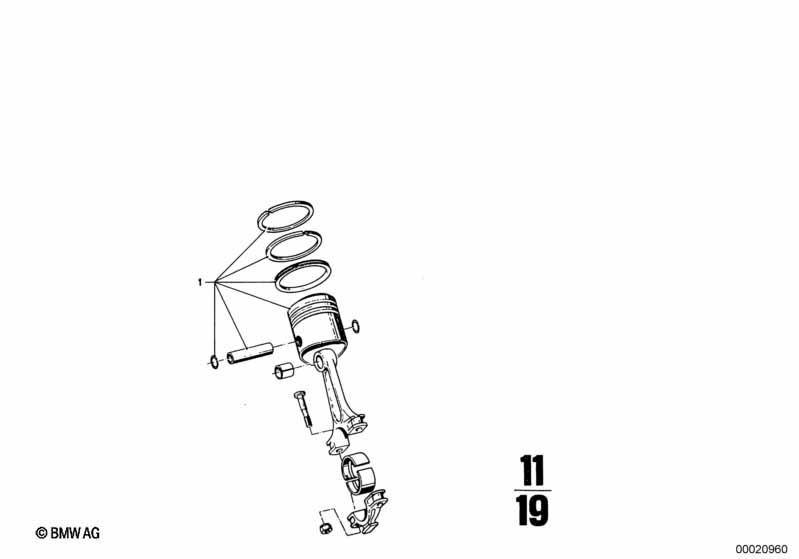

This Piston technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mahle piston | 88,97MM("0") | 6 | 09/1971 | 02/1977 | 11251261970 | ENDED | Shop at ECS Tuning | ||
| 01 | Mahle piston | 88,97MM("0") | 6 | 09/1971 | 02/1977 | 11251261970 | ENDED | Shop at ECS Tuning | ||
| 01 | Mahle piston | 89,05MM("00") | 6 | 09/1971 | 02/1977 | 11251261971 | $194.18 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,05MM("00") | 6 | 09/1971 | 02/1977 | 11251261971 | $194.18 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,22MM(+0,25) | 6 | 09/1971 | 02/1977 | 11251261972 | $222.08 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,22MM(+0,25) | 6 | 09/1971 | 02/1977 | 11251261972 | $222.08 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,47MM(+0,50) | 6 | 09/1971 | 02/1977 | 11251261973 | $191.95 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,47MM(+0,50) | 6 | 09/1971 | 02/1977 | 11251261973 | $191.95 | ENDED | Shop at ECS Tuning | |
| 01 | Piston | 88.97MM("0") | 6 | 09/1971 | 02/1977 | 11251261975 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 88.97MM("0") | 6 | 09/1971 | 02/1977 | 11251261975 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.05MM("00") | 6 | 09/1971 | 02/1977 | 11251261976 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.05MM("00") | 6 | 09/1971 | 02/1977 | 11251261976 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.22MM(+0.25) | 6 | 09/1971 | 02/1977 | 11251261977 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.22MM(+0.25) | 6 | 09/1971 | 02/1977 | 11251261977 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.47MM(+0.50) | 6 | 09/1971 | 02/1977 | 11251261978 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89.47MM(+0.50) | 6 | 09/1971 | 02/1977 | 11251261978 | ENDED | Shop at ECS Tuning | ||
| 01 | Nueral/alcan piston | 88.97MM("0") | 6 | 09/1971 | 02/1977 | 11251261980 | ENDED | Shop at ECS Tuning | ||
| 01 | Nueral/alcan piston | 88.97MM("0") | 6 | 09/1971 | 02/1977 | 11251261980 | ENDED | Shop at ECS Tuning | ||
| 01 | Nueral/alcan piston | 89.05MM("00") | 6 | 09/1971 | 02/1977 | 11251261981 | ENDED | Shop at ECS Tuning | ||
| 01 | Nueral/alcan piston | 89.05MM("00") | 6 | 09/1971 | 02/1977 | 11251261981 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
