Radiator for BMW 2500-3.3Li 3.3Li (1975)

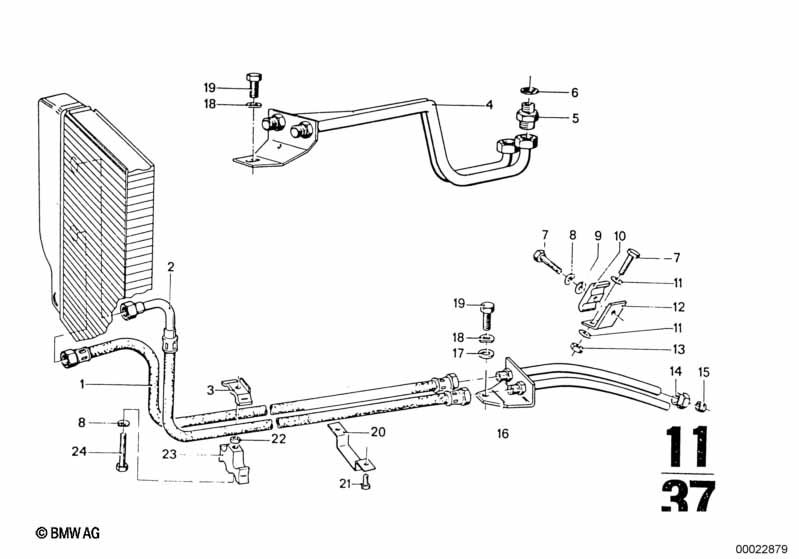

This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooling pipe | 1 | 17221115747 | $57.75 | Shop at ECS Tuning | |||||
| 01 | Oil cooling pipe | 1 | 17221115747 | $57.75 | Shop at ECS Tuning | |||||
| 02 | Oil cooling pipe | 1 | 17221115763 | $67.47 | Shop at ECS Tuning | |||||
| 02 | Oil cooling pipe | 1 | 17221115763 | $67.47 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 1 | 17221108417 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 1 | 17221108417 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 09/1973 | 02/1977 | 17221116645 | $19.25 | Shop at ECS Tuning | |||
| 04 | Pipe | 1 | 09/1973 | 02/1977 | 17221116645 | $19.25 | Shop at ECS Tuning | |||
| 05 | Threaded pipe joint | M14-M18X1,5 | 2 | 09/1973 | 02/1977 | 17221116672 | $9.12 | Shop at ECS Tuning | ||
| 05 | Threaded pipe joint | M14-M18X1,5 | 2 | 09/1973 | 02/1977 | 17221116672 | $9.12 | Shop at ECS Tuning | ||
| 06 | Gasket ring | A14X18-CU | 2 | 08/1971 | 02/1977 | 07119963201 | $0.18 | Shop at ECS Tuning | ||
| 06 | Gasket ring | A14X18-CU | 2 | 08/1971 | 02/1977 | 07119963201 | $0.18 | Shop at ECS Tuning | ||
| 17 | Washer | 10-200 HV-ZNNIV | 1 | 08/1971 | 02/1977 | 07119904168 | $8.35 | Shop at ECS Tuning | ||
| 17 | Washer | 10-200 HV-ZNNIV | 1 | 08/1971 | 02/1977 | 07119904168 | $8.35 | Shop at ECS Tuning | ||
| 18 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 18 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M10X18-8.8-ZNS3 | 1 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M10X18-8.8-ZNS3 | 1 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 22 | Washer | 1 | 11410752144 | ENDED | Shop at ECS Tuning | |||||
| 22 | Washer | 1 | 11410752144 | ENDED | Shop at ECS Tuning | |||||
| 23 | Bracket oil pipe | 1 | 17221108416 | $1.70 | Shop at ECS Tuning | |||||
| 23 | Bracket oil pipe | 1 | 17221108416 | $1.70 | Shop at ECS Tuning | |||||
| 24 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
