Radiator for BMW 2500-3.3Li 3.0Si (1971)
This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air cleaner | 1 | 09/1971 | 02/1977 | 11611256507 | ENDED | Shop at ECS Tuning | |||
| -> Fg B | ||||||||||
| 02 | Hose clamp | L18-24 | 1 | 09/1971 | 02/1977 | 07129952109 | $1.07 | Shop at ECS Tuning | ||
| -> Fg B | ||||||||||
| 03 | Hose clamp | L12-15 | 2 | 09/1971 | 02/1977 | 07129952104 | $1.18 | Shop at ECS Tuning | ||
| 04 | Hose | 1 | 09/1971 | 02/1977 | 11531257486 | $10.83 | ENDED | Shop at ECS Tuning | ||
| -> Fg B | ||||||||||
| 12 | Hose | 1 | 09/1971 | 02/1977 | 11611256505 | $30.30 | Shop at ECS Tuning | |||
| -> Fg A | ||||||||||
| 13 | Hose clamp | L23-29 | 2 | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||

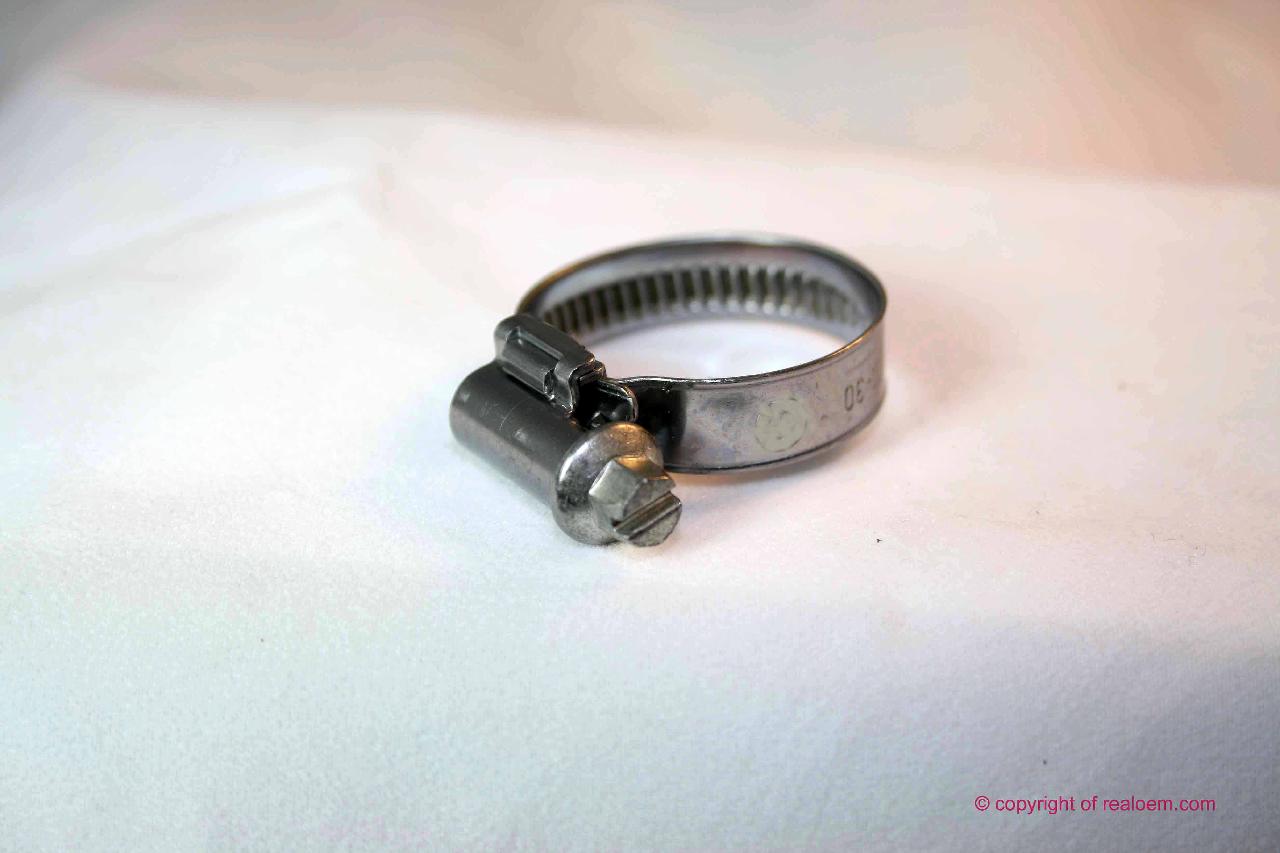

| 13 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Gasket Asbestos Free | 1 | 11611730239 | $4.80 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
