Radiator for BMW 2500-3.3Li 3.0Si (1971)

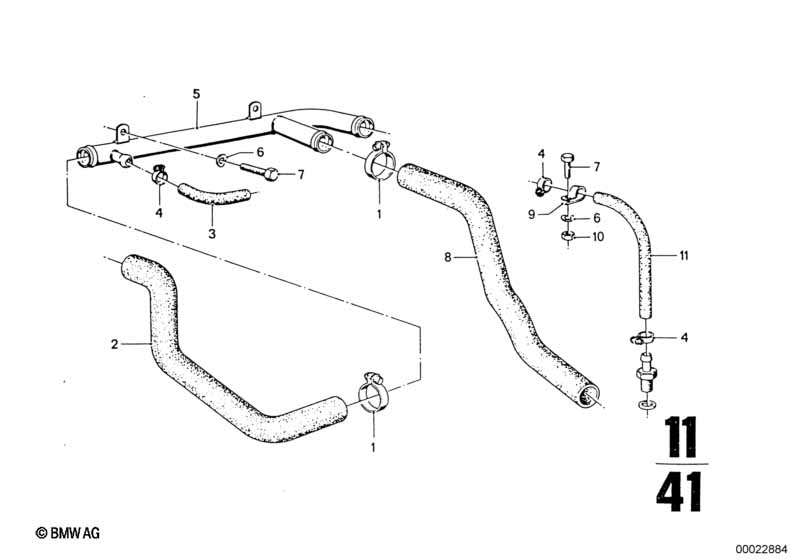

This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | L28-33 | 4 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 02 | Hose | 1 | 11531266137 | $25.47 | Shop at ECS Tuning | |||||
| 03 | Hose | 1 | 11531266476 | $10.83 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 09/1971 | 09/1973 | 11531261156 | $155.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Hex bolt | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Hose | 1 | 11531256500 | $25.24 | Shop at ECS Tuning | |||||
| 09 | Pipe clamp | 1 | 11531257511 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
