Vacuum control for BMW 2500-3.3Li 3.0L (1975)

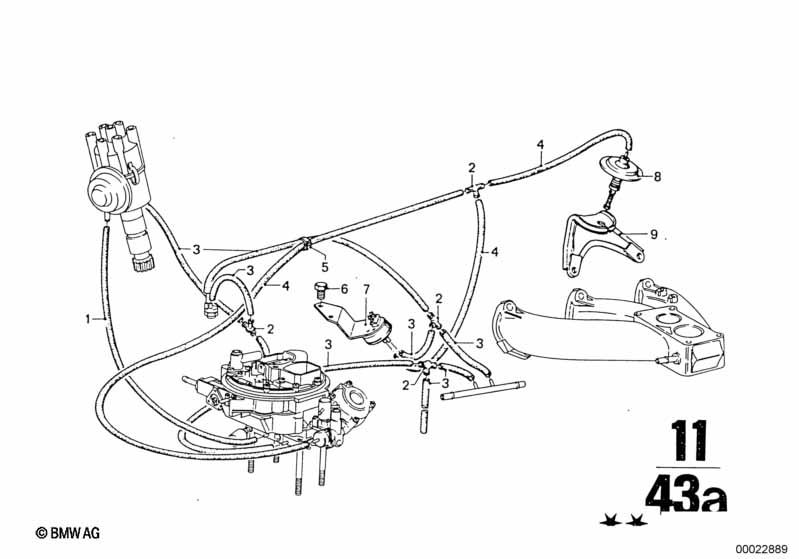

This Vacuum control technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 02 | T-Connector | 4 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 05 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Thermo-time valve | 1 | 11741262975 | ENDED | Shop at ECS Tuning | |||||
| 08 | Vacuum regulator | 1 | 11741262974 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 11741262982 | ENDED | Shop at ECS Tuning |
