Vacuum control for BMW 2500-3.3Li 3.0L (1975)

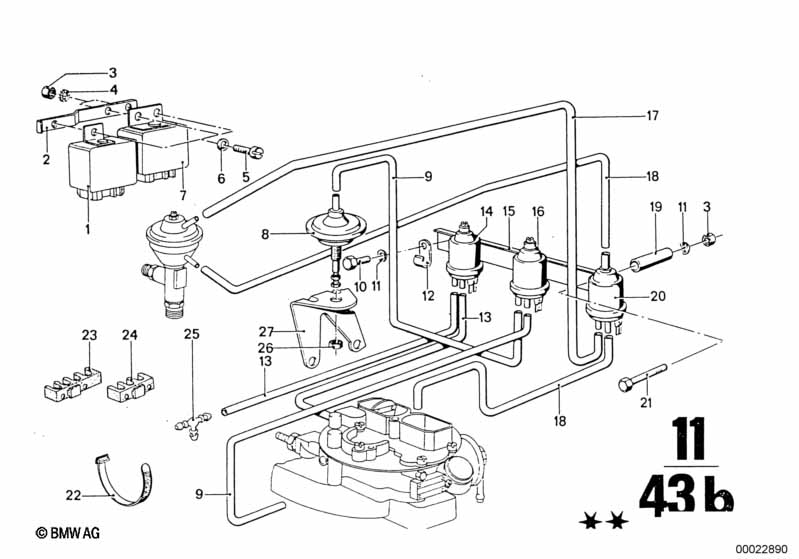

This Vacuum control technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay for speed switch | 1 | 11641257241 | ENDED | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 11641257249 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 04 | Tooth washer | A5,1 | 3 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X12-ZN | 3 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Washer | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Speed switch | 1 | 11641252408 | $121.64 | ENDED | Shop at ECS Tuning | ||||
| 08 | Vacumm box | 1 | 13211252253 | $89.60 | Shop at ECS Tuning | |||||
| 09 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 61131359184 | ENDED | Shop at ECS Tuning | |||||
| 13 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 14 | Electr.valve black | 1 | 11741265859 | $84.16 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 11741259962 | ENDED | Shop at ECS Tuning | |||||
| 16 | Electr.valve white | 1 | 11741265860 | $67.10 | ENDED | Shop at ECS Tuning | ||||
| 17 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 18 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 19 | Spacer sleeve | 2 | 11741259966 | ENDED | Shop at ECS Tuning | |||||
| 20 | Electr.valve red | 1 | 11741263520 | ENDED | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M5X30-8.8-ZNS | 2 | 07119913925 | $1.74 | Shop at ECS Tuning | ||||
| 22 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 23 | Clamp | 1 | 11731259204 | ENDED | Shop at ECS Tuning | |||||
| 24 | Holder | 2 | 12121353672 | $2.54 | Shop at ECS Tuning | |||||
| 25 | T-Connector | 4 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 26 | Hex nut | M12X1 | 1 | 11512077715 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 27 | Holder | 1 | 13211261599 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
