Crankshaft with bearing shells for BMW 2500-3.3Li 3.3L (1974)

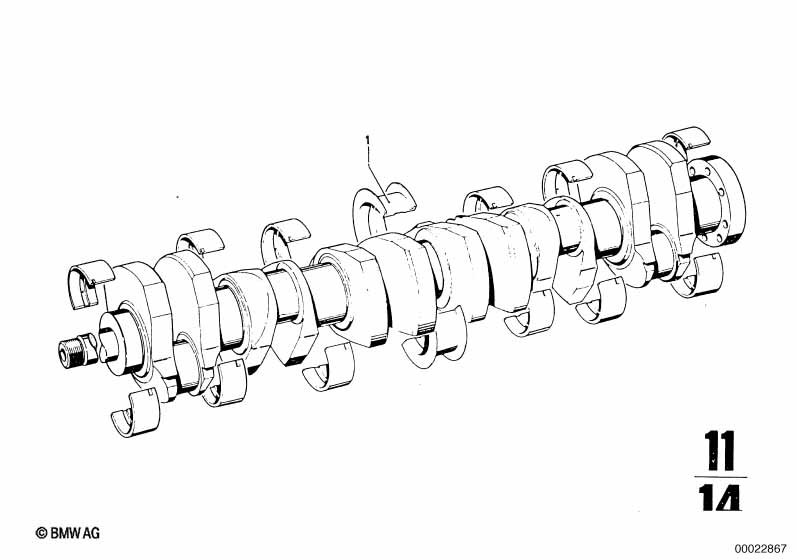

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide-bearing Shell red | 60,00MM | 2 | 08/1968 | 02/1977 | 11211261033 | $27.36 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell blue | 60,00MM | 2 | 08/1968 | 02/1977 | 11211261034 | $27.36 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell red | 59,75MM(+0,25) | 2 | 08/1968 | 02/1977 | 11211261035 | $37.98 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell blue | 59,75MM(+0,25) | 2 | 08/1968 | 02/1977 | 11211261036 | $33.48 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell red | 59,50MM(+0,50) | 2 | 08/1968 | 02/1977 | 11211261037 | $37.98 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell blue | 59,50MM(+0,50) | 2 | 08/1968 | 02/1977 | 11211261038 | $37.98 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell red | 59,25MM(+0,75) | 2 | 08/1968 | 02/1977 | 11211261039 | $28.47 | Shop at ECS Tuning | ||
| 01 | Guide-bearing Shell blue | 59,25MM(+0,75) | 2 | 08/1968 | 02/1977 | 11211261040 | $28.47 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
