Cylinder head/cylinder head cover for BMW V8 3200CS (1962)

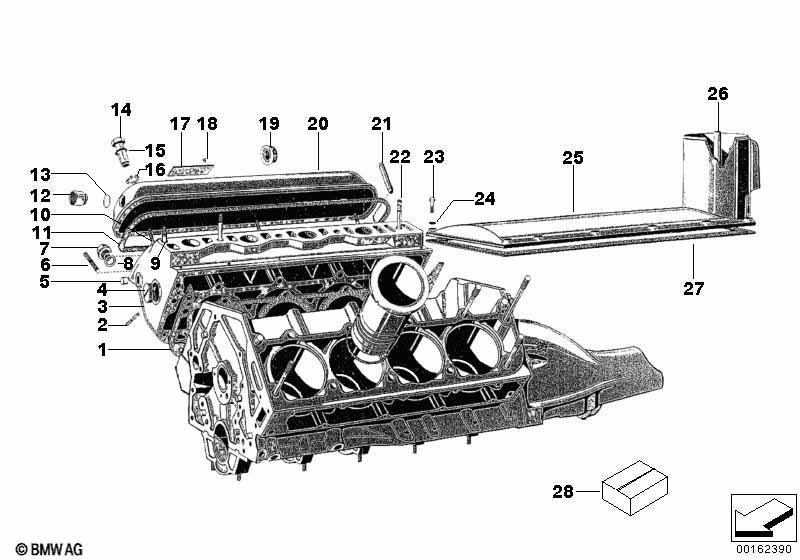

This Cylinder head/cylinder head cover technical drawing provides a detailed breakdown of the assembly for the V8 3200CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head gasket | 3,2 LITER | 2 | 11120521354 | $158.36 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket Asbestos Free | VENTILDECKEL | 2 | 11120305024 | ENDED | Shop at ECS Tuning | ||||
| 23 | Hex bolt | M6X28 | 12 | 07119912266 | $1.64 | ENDED | Shop at ECS Tuning | |||
| 26 | Oil filter | 1 | 11420561207 | Shop at ECS Tuning | ||||||
| 27 | Gasket | 3,2 LITER | 1 | 11420561212 | Shop at ECS Tuning | |||||
| 28 | Seal and gasket set, engine | 3,2 LITER | 1 | 11110305020 | ENDED | Shop at ECS Tuning | ||||
| 28 | Seal and gasket set, engine | 3,2 SUPER | 1 | 11110305021 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 3200CS Cylinder head/cylinder head cover?
- This technical diagram illustrates the Cylinder head/cylinder head cover within the Engine group for the V8 3200CS produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head gasket (Part #11120521354).
- Which models use the hardware listed in this Cylinder head/cylinder head cover?
- The hardware and components featured in the Cylinder head/cylinder head cover are specific to the V8 3200CS produced during 1962. These technical specifications ensure that parts like the Cylinder head gasket (11120521354) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head/cylinder head cover assembly?
- Each item in the Cylinder head/cylinder head cover corresponds to the numbered list below the illustration. For the V8 3200CS, you can identify the Cylinder head gasket by locating its position on the schematic, which then links to the official BMW part number 11120521354 for the Engine section.
