Wheel casing for BMW V8 3200CS (1962)

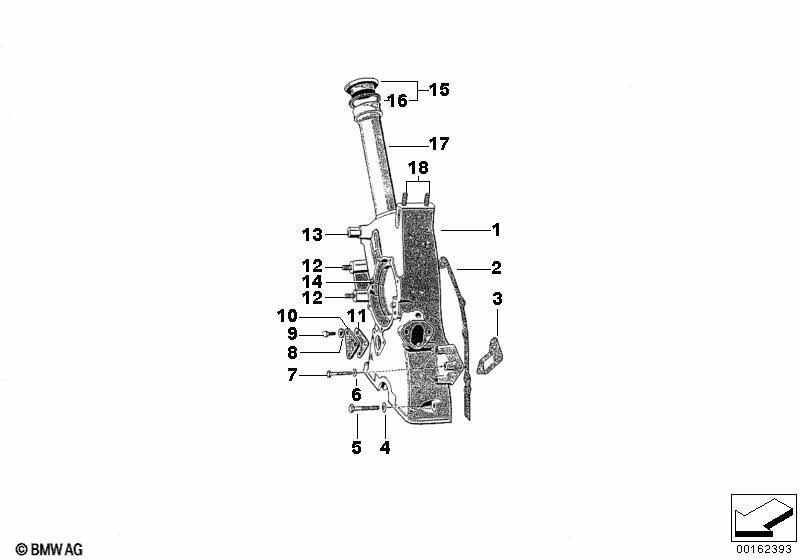

This Wheel casing technical drawing provides a detailed breakdown of the assembly for the V8 3200CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | Hex bolt | M6X18 | 3 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 14 | Dowel pin | 6M6X14 | 2 | 07119942074 | $0.60 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 3200CS Wheel casing?
- This technical diagram illustrates the Wheel casing within the Engine group for the V8 3200CS produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #23317545769).
- Which models use the hardware listed in this Wheel casing?
- The hardware and components featured in the Wheel casing are specific to the V8 3200CS produced during 1962. These technical specifications ensure that parts like the Hex bolt (23317545769) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel casing assembly?
- Each item in the Wheel casing corresponds to the numbered list below the illustration. For the V8 3200CS, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 23317545769 for the Engine section.
