Engine Suspension for BMW V8 3200CS (1962)

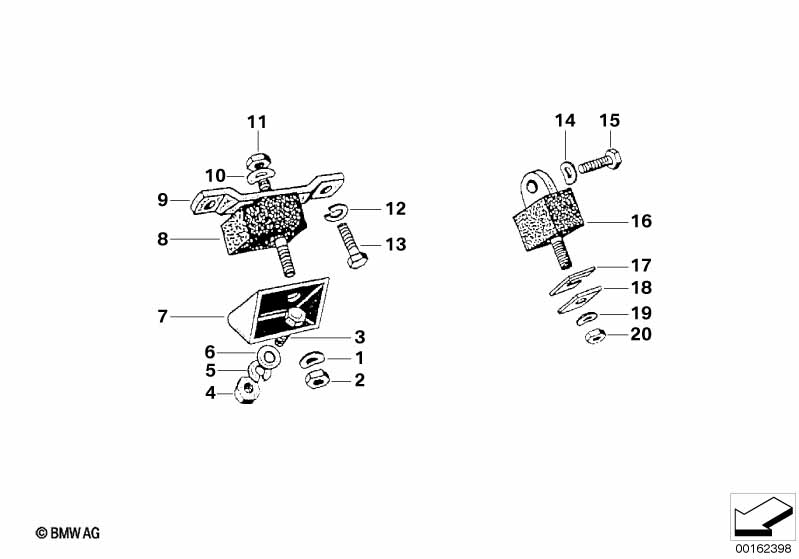

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the V8 3200CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 14 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 19 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 20 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW V8 3200CS Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine group for the V8 3200CS produced during 1962. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904463).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the V8 3200CS produced during 1962. These technical specifications ensure that parts like the Wave washer (07119904463) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the V8 3200CS, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904463 for the Engine section.
