Alternator, individual parts for BMW 1500-2000CS 1800 (1969)

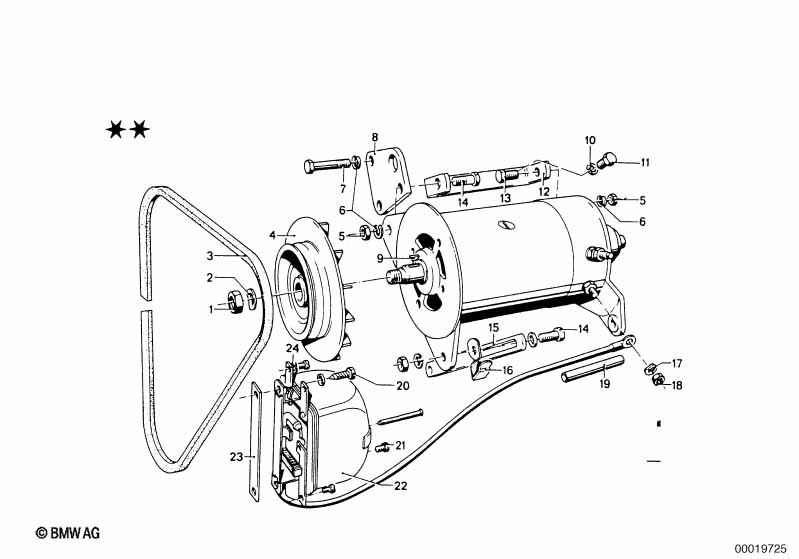

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M12X1,5 | 1 | 07119921627 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | A13/HV-ZNS | 1 | 04/1971 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Washer | 12-300 HV-ZNS3 | 1 | 04/1971 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 02 | Washer | 13-140 HV-ZN | 1 | 07119936442 | $1.48 | Shop at ECS Tuning | ||||
| 03 | Fan belt | 1 | 12311276306 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 12318602024 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNS3 | 4 | 04/1971 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X80 | 2 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 08 | Bracket | 1 | 12318602010 | ENDED | Shop at ECS Tuning | |||||
| 10 | Set spring washer 20 | B10 | 1 | 07509064021 | ENDED | Shop at ECS Tuning | ||||
| 11 | Set bolt 10 | M10X20 | 1 | 07509064062 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket | 1 | 12318602010 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 14 | Set bolt 10 | M10X20 | 2 | 07509064062 | ENDED | Shop at ECS Tuning | ||||
| 15 | Shackle | 1 | 12318602035 | ENDED | Shop at ECS Tuning | |||||
| 16 | Clamp | 1 | 12318602040 | ENDED | Shop at ECS Tuning | |||||
| 17 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 19 | Insulating hose | B 12 | 1 | 07119975332 | ENDED | Shop at ECS Tuning | ||||
| 20 | Sheet metal screw | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 22 | Voltage regulator | 6V | 1 | 12321350604 | ENDED | Shop at ECS Tuning | ||||
| 24 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning |
