Alternator, individual parts for BMW 1500-2000CS 1800 (1969)

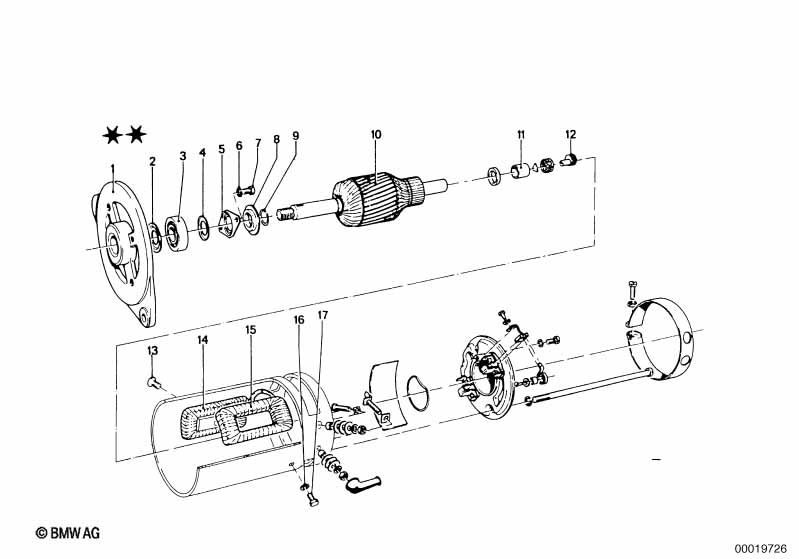

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bearing | 1 | 12318602114 | ENDED | Shop at ECS Tuning | |||||
| 02 | Washer | 1 | 12318602126 | ENDED | Shop at ECS Tuning | |||||
| 03 | Grooved ball bearing | 1 | 07119981210 | ENDED | Shop at ECS Tuning | |||||
| 05 | Washer | 1 | 12318602122 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set spring washer 50 | B4 | 5 | 07509063158 | ENDED | Shop at ECS Tuning | ||||
| 10 | Armature | 6 VOLT | 1 | 12318602116 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bush | 1 | 12318602150 | ENDED | Shop at ECS Tuning | |||||
| 12 | NIpple | 1 | 12318630103 | ENDED | Shop at ECS Tuning | |||||
| 14 | Exciter winding | 6 VOLT | 1 | 12318602100 | ENDED | Shop at ECS Tuning | ||||
| 15 | Exciter winding | 6 VOLT | 1 | 12318602101 | ENDED | Shop at ECS Tuning | ||||
| 17 | Set bolt 20 | M5X10 | 1 | 07509064069 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Alternator, individual parts?
- This technical diagram illustrates the Alternator, individual parts within the Engine electrical system group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Bearing (Part #12318602114).
- Which models use the hardware listed in this Alternator, individual parts?
- The hardware and components featured in the Alternator, individual parts are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Bearing (12318602114) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts assembly?
- Each item in the Alternator, individual parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Bearing by locating its position on the schematic, which then links to the official BMW part number 12318602114 for the Engine electrical system section.
