Alternator, individual parts for BMW 1500-2000CS 1800 (1969)

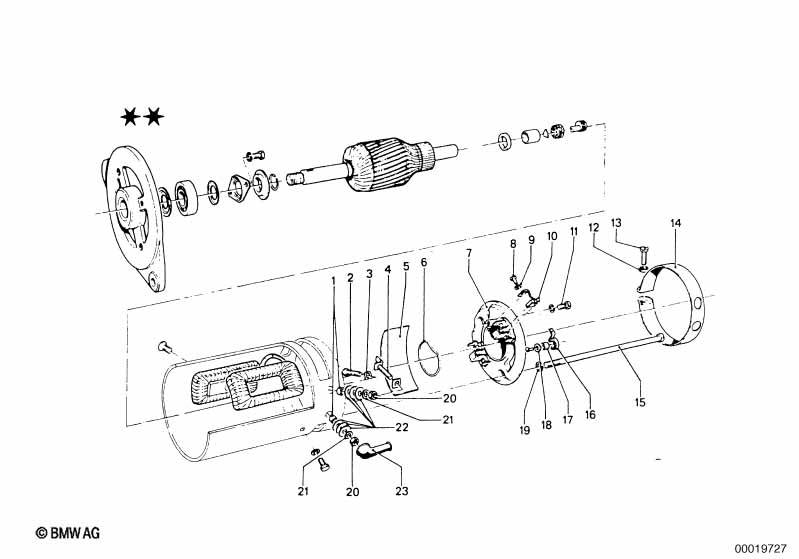

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bush | 2 | 12318602110 | ENDED | Shop at ECS Tuning | |||||
| 07 | Collector guiding | 1 | 12318602139 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fillister-head screw | M4X5 | 2 | 07119919358 | ENDED | Shop at ECS Tuning | ||||
| 09 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 09 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Brush | 2 | 12318602146 | $7.14 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex nut | M4 | 1 | 07119921025 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | AM 4 X 12 | 1 | 07119919380 | ENDED | Shop at ECS Tuning | ||||
| 14 | Tension strap | 1 | 12318602158 | ENDED | Shop at ECS Tuning | |||||
| 15 | Screw | 2 | 12318602156 | ENDED | Shop at ECS Tuning | |||||
| 18 | Washer | 2 | 12318602140 | ENDED | Shop at ECS Tuning | |||||
| 19 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 21 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Rubber grommet | 4 | 12318602112 | ENDED | Shop at ECS Tuning | |||||
| 23 | Cap | 2 | 62128570124 | ENDED | Shop at ECS Tuning |
