Distributor-single parts for BMW 2500-3.3Li 3.0L (1975)

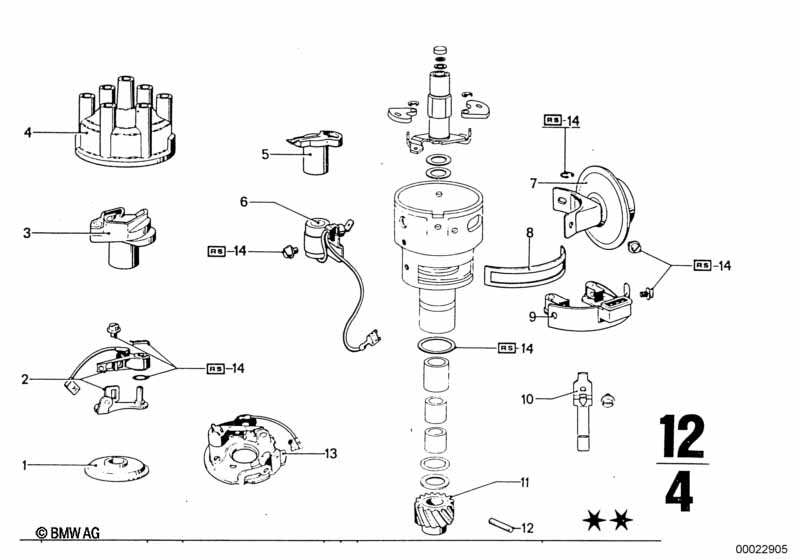

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit dust cap | 1 | 12111355632 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit contact breaker | 1 | 09/1973 | 02/1977 | 12111267393 | $9.18 | Shop at ECS Tuning | |||
| 03 | Rotor | 5000-OHM | 1 | 09/1973 | 02/1977 | 12111355866 | $35.97 | ENDED | Shop at ECS Tuning | |
| 04 | Distributor cap | 1 | 12111363422 | $28.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Distributor cap | 1 | 12111363292 | Shop at ECS Tuning | ||||||
| 06 | Condenser | 1 | 09/1973 | 02/1977 | 12111271689 | $9.80 | Shop at ECS Tuning | |||
| 07 | Vacuum regulator | 1 | 09/1973 | 02/1977 | 12111361762 | $126.34 | ENDED | Shop at ECS Tuning | ||
| 10 | Clip | 1 | 12111357286 | $2.11 | Shop at ECS Tuning | |||||
| 11 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit distributor parts | 1 | 12111355629 | $13.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
