Alternator suspension bracket for BMW 2500-3.3Li 2800 (1969)

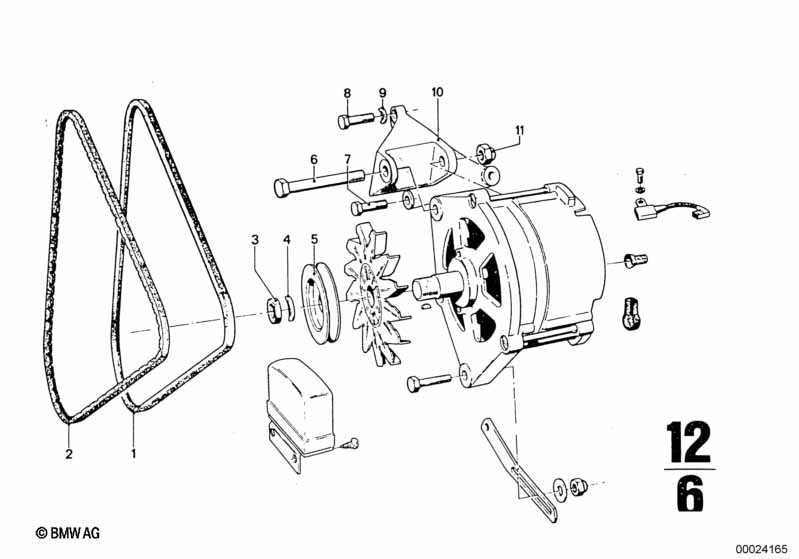

This Alternator suspension bracket technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan belt | 12,5X1025LA | 1 | 08/1968 | 09/1973 | 07119990174 | ENDED | Shop at ECS Tuning | ||
| 01 | Fan belt | 12,5X1025MM | 1 | 08/1968 | 09/1973 | 12311268689 | $13.62 | Shop at ECS Tuning | ||
| 03 | Hex nut | 1 | 12318602176 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Pulley | D=78MM | 1 | 12311277561 | $57.47 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M10X80 | 1 | 08/1968 | 02/1977 | 31111136251 | $1.11 | ENDED | Shop at ECS Tuning | |
| 07 | Hex bolt | M8X35 | 2 | 08/1968 | 02/1977 | 07119913676 | $0.36 | Shop at ECS Tuning | ||
| 08 | Hex bolt | M8X22-8.8-ZNS3 | 3 | 08/1968 | 02/1977 | 07119904040 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X30-ZN | 1 | 08/1968 | 02/1977 | 07119913662 | $0.22 | Shop at ECS Tuning | ||
| 09 | Wave washer | 8,4X15-ZNS3 | 3 | 08/1968 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 10 | Supporting bracket | 1 | 08/1968 | 02/1977 | 12311257279 | $50.64 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M10-10 ZNS3 | 1 | 08/1968 | 02/1977 | 33326768900 | $0.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
