Alternator, individual parts for BMW 2500-3.3Li 3.0Si (1971)

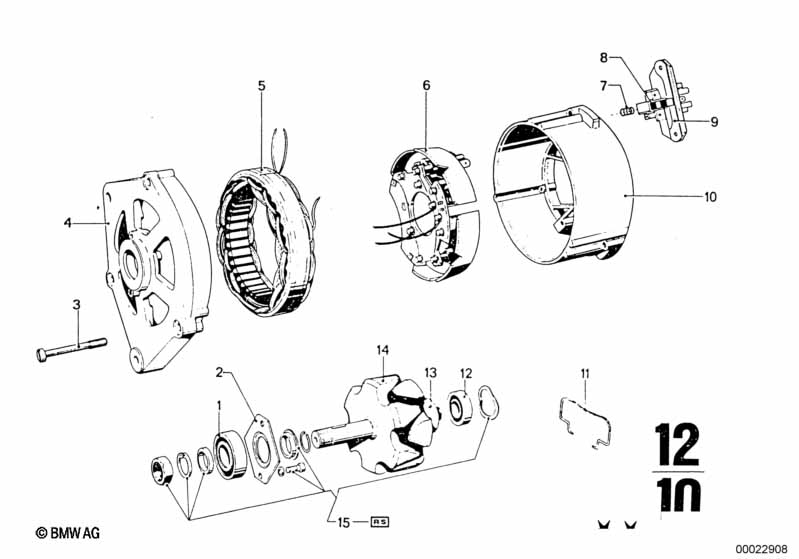

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to | ||||||||||
| -- | Alternator | 55A | X | 12311353453 | $255.56 | ENDED | Shop at ECS Tuning | |||
| 01 | Grooved ball bearing | 47X17X14 | 1 | 09/1971 | 02/1977 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |
| 02 | Supporting plate | 1 | 09/1971 | 02/1977 | 12311459279 | $1.12 | ENDED | Shop at ECS Tuning | ||
| 03 | Fillister-head screw | 4 | 12311354683 | ENDED | Shop at ECS Tuning | |||||
| 04 | Housing assy front | 1 | 09/1971 | 02/1977 | 12311354677 | $127.22 | ENDED | Shop at ECS Tuning | ||
| 05 | Stator assy | 1 | 12311354676 | ENDED | Shop at ECS Tuning | |||||
| 06 | Diode assy | 1 | 12311354682 | $75.61 | ENDED | Shop at ECS Tuning | ||||
| 07 | Compression spring | 2 | 12311268412 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Carbon brush set | 1 | 12311354681 | $4.08 | ENDED | Shop at ECS Tuning | ||||
| 09 | Brush holder plate | 1 | 12311354680 | $81.47 | Shop at ECS Tuning | |||||
| 10 | Housing assy rear | 1 | 09/1971 | 02/1977 | 12311354679 | ENDED | Shop at ECS Tuning | |||
| 11 | Bow | 1 | 12311354766 | ENDED | Shop at ECS Tuning | |||||
| 12 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 13 | Slip ring | 1 | 12311354689 | ENDED | Shop at ECS Tuning | |||||
| 14 | Rotor | 1 | 09/1971 | 02/1977 | 12311354678 | ENDED | Shop at ECS Tuning | |||
| 15 | Repair kit rotor | 1 | 09/1971 | 02/1977 | 12311354685 | $7.04 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
