Alternator parts 55a for BMW 2500-3.3Li 3.3Li (1975)

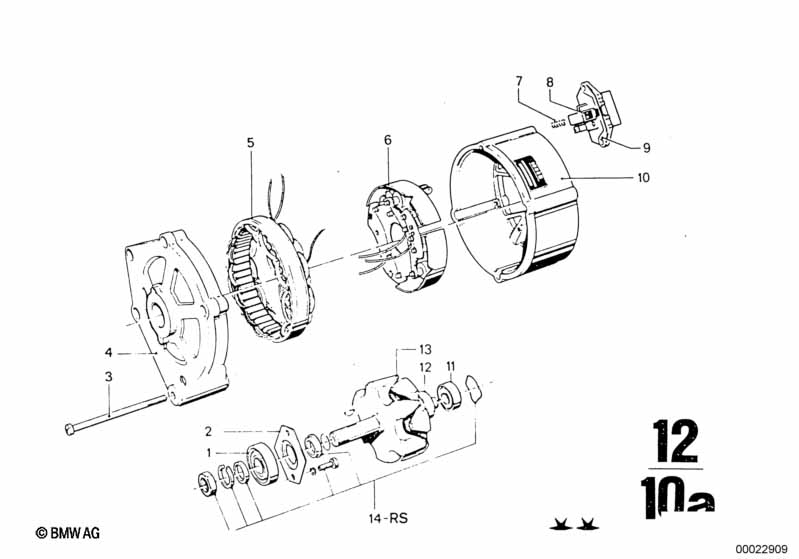

This Alternator parts 55a technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grooved ball bearing | 40X17X12 | 1 | 12311714522 | $17.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting plate | 1 | 12311459279 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | 3 | 12311354683 | ENDED | Shop at ECS Tuning | |||||
| 05 | Stator assy | 1 | 12311354676 | ENDED | Shop at ECS Tuning | |||||
| 06 | Diode assy | 1 | 12311354682 | $75.61 | ENDED | Shop at ECS Tuning | ||||
| 07 | Compression spring | 2 | 12311268412 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Carbon brush set | 1 | 12311354681 | $4.08 | ENDED | Shop at ECS Tuning | ||||
| 09 | Voltage regulator | BOSCH | 1 | 12311286073 | $63.58 | ENDED | Shop at ECS Tuning | |||
| 10 | Housing assy rear | 1 | 12311359768 | ENDED | Shop at ECS Tuning | |||||
| 11 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 12 | Slip ring | 1 | 12311354689 | ENDED | Shop at ECS Tuning | |||||
| 13 | Rotor | 1 | 12311358008 | ENDED | Shop at ECS Tuning | |||||
| 14 | Repair kit rotor | 1 | 12311350332 | $14.45 | ENDED | Shop at ECS Tuning |
