Carburetor mounting parts for BMW 1500-2000CS 1500 (1964)

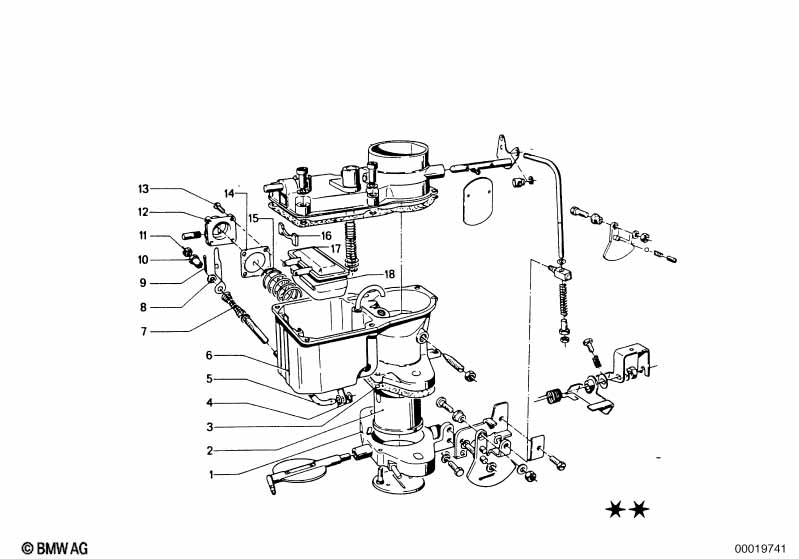

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 02 | Venturi | D=26MM | 1 | 02/1962 | 07/1977 | 13110639209 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket | 1 | 02/1962 | 07/1977 | 13110639196 | $4.02 | Shop at ECS Tuning | |||
| 04 | Lock Ring | 2 | 13110639235 | ENDED | Shop at ECS Tuning | |||||
| 05 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 07 | Compression spring | 1 | 13110639283 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex nut | 1 | 13111258945 | ENDED | Shop at ECS Tuning | |||||
| 11 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 12 | Kit pump cover | 1 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 14 | Diaphragm | 1 | 13110639362 | $34.31 | Shop at ECS Tuning | |||||
| 14 | Kit pump cover | 1 | 13111709144 | ENDED | Shop at ECS Tuning | |||||
| 15 | Compression spring | 1 | 13110639333 | Shop at ECS Tuning | ||||||
| 16 | Holder | 1 | 13110639198 | ENDED | Shop at ECS Tuning | |||||
| 17 | Set float assy | 1 | 13111709119 | $191.16 | ENDED | Shop at ECS Tuning | ||||
| 18 | Float axis | 1 | 13110639207 | $0.88 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1500 Carburetor mounting parts?
- This technical diagram illustrates the Carburetor mounting parts within the Fuel preparation system group for the 1500-2000CS 1500 produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Venturi (Part #13110639209).
- Which models use the hardware listed in this Carburetor mounting parts?
- The hardware and components featured in the Carburetor mounting parts are specific to the 1500-2000CS 1500 produced during 1964. These technical specifications ensure that parts like the Venturi (13110639209) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor mounting parts assembly?
- Each item in the Carburetor mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1500, you can identify the Venturi by locating its position on the schematic, which then links to the official BMW part number 13110639209 for the Fuel preparation system section.
