Carburetor mounting parts for BMW 1500-2000CS 2000tilux (1966)

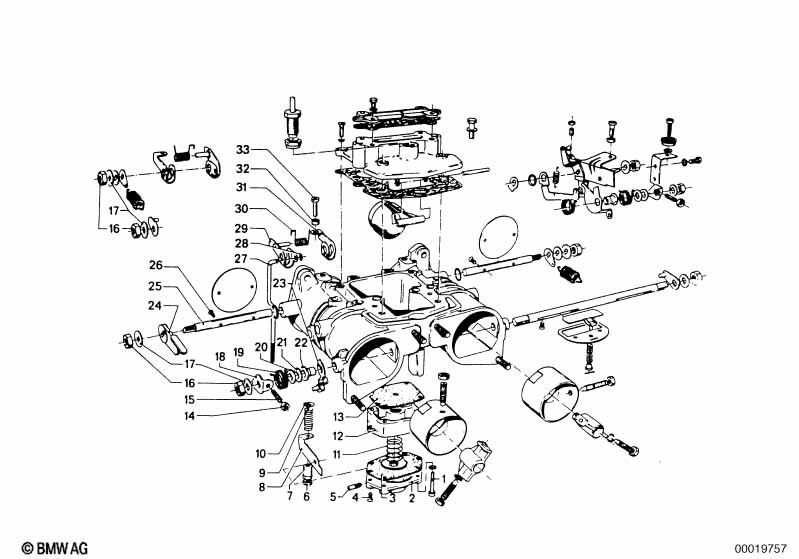

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 40 Phh | |||||||||
| 04 | Fillister head screw | 4 | 13110539264 | ENDED | Shop at ECS Tuning | |||||
| 04 | Kit pump cover | 4 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shaft | 2 | 13110539141 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex nut | 2 | 13111258945 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set pump rod | 2 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lever | 2 | 13110639339 | ENDED | Shop at ECS Tuning | |||||
| 09 | Compression spring | 2 | 13110739139 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 13110539150 | ENDED | Shop at ECS Tuning | |||||
| 11 | Diaphragm | 2 | 13110639322 | ENDED | Shop at ECS Tuning | |||||
| 12 | Housing | 2 | 13110639332 | ENDED | Shop at ECS Tuning | |||||
| 14 | Nut | 3 | 13110639393 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 15 | Grub screw | 2 | 13110639342 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hex nut | M8X1 | 6 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 17 | Circlip | 4 | 13110539252 | ENDED | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 13110739131 | ENDED | Shop at ECS Tuning | |||||
| 19 | Retainer spring | 1 | 13110639376 | ENDED | Shop at ECS Tuning | |||||
| 20 | Shim | 2 | 13110639351 | ENDED | Shop at ECS Tuning | |||||
| 23 | Lever | 1 | 01/1964 | 02/1971 | 13210639380 | ENDED | Shop at ECS Tuning | |||
| 24 | Throttle lever | 1 | 13111252735 | ENDED | Shop at ECS Tuning | |||||
| 25 | Shaft | 2 | 13111252154 | ENDED | Shop at ECS Tuning | |||||
| 27 | Connection rod | VORNE | 1 | 13110639446 | ENDED | Shop at ECS Tuning | ||||
| 27 | Connection rod | HINTEN | 1 | 13110639447 | ENDED | Shop at ECS Tuning | ||||
| 28 | Lock Ring | 2 | 13110639180 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 29 | Lever | 1 | 13110639410 | ENDED | Shop at ECS Tuning | |||||
| 30 | Retainer spring | 1 | 13110739111 | ENDED | Shop at ECS Tuning | |||||
| 31 | Operating lever | 1 | 13111252410 | $74.49 | ENDED | Shop at ECS Tuning | ||||
| 32 | Nut | 2 | 13110639395 | ENDED | Shop at ECS Tuning | |||||
| 33 | Adjuster | 2 | 13110639336 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tilux Carburetor mounting parts?
- This technical diagram illustrates the Carburetor mounting parts within the Fuel preparation system group for the 1500-2000CS 2000tilux produced during 1966. It provides a detailed exploded view of the components, identifying key parts such as the Fillister head screw (Part #13110539264).
- Which models use the hardware listed in this Carburetor mounting parts?
- The hardware and components featured in the Carburetor mounting parts are specific to the 1500-2000CS 2000tilux produced during 1966. These technical specifications ensure that parts like the Fillister head screw (13110539264) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor mounting parts assembly?
- Each item in the Carburetor mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tilux, you can identify the Fillister head screw by locating its position on the schematic, which then links to the official BMW part number 13110539264 for the Fuel preparation system section.
