Fuel supply/pump/filter for BMW 1500-2000CS 2000tii (1970)

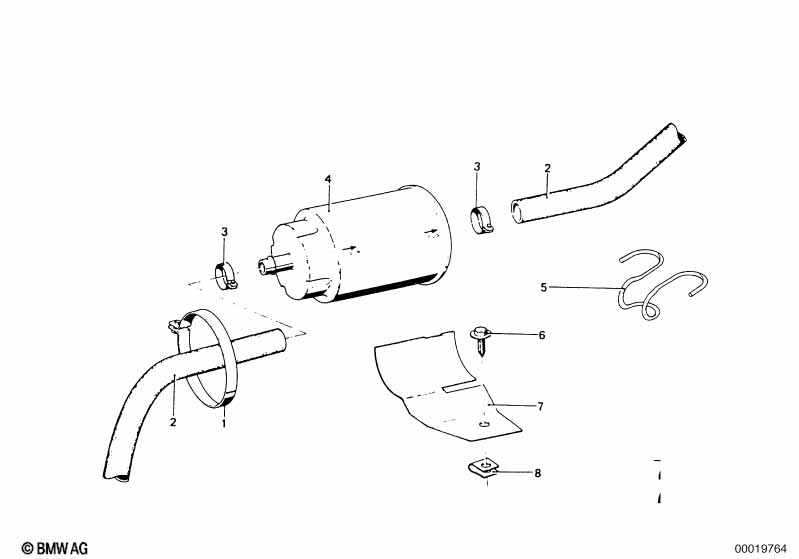

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | L=47-54MM | 1 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 02 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Fuel filter | 1 | 13321256425 | Shop at ECS Tuning | ||||||
| 05 | Strap | 1 | 01/1970 | 10/1975 | 13311256503 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex head screw | ST6,3X13-C-Z1 | 1 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
| 07 | Shackle | 1 | 13321256490 | ENDED | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,2-2 | 1 | 07129904245 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tii Fuel supply/pump/filter?
- This technical diagram illustrates the Fuel supply/pump/filter within the Fuel preparation system group for the 1500-2000CS 2000tii produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Hose clamp (Part #07129952121).
- Which models use the hardware listed in this Fuel supply/pump/filter?
- The hardware and components featured in the Fuel supply/pump/filter are specific to the 1500-2000CS 2000tii produced during 1970. These technical specifications ensure that parts like the Hose clamp (07129952121) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/filter assembly?
- Each item in the Fuel supply/pump/filter corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tii, you can identify the Hose clamp by locating its position on the schematic, which then links to the official BMW part number 07129952121 for the Fuel preparation system section.
