Mechanical fuel injection for BMW 1500-2000CS 2000tii (1970)

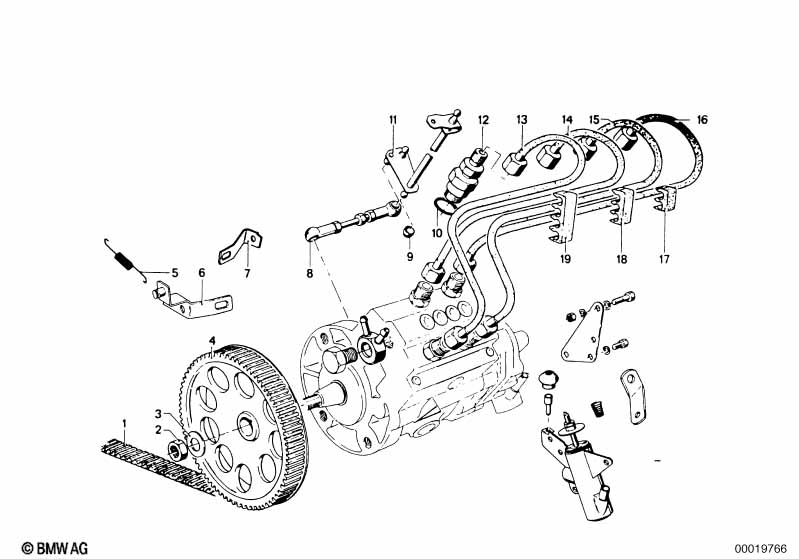

This Mechanical fuel injection technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tooth belt | 1 | 13521259268 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | M10 | 1 | 07119921612 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 10-200 HV-ZNNIV | 5 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||

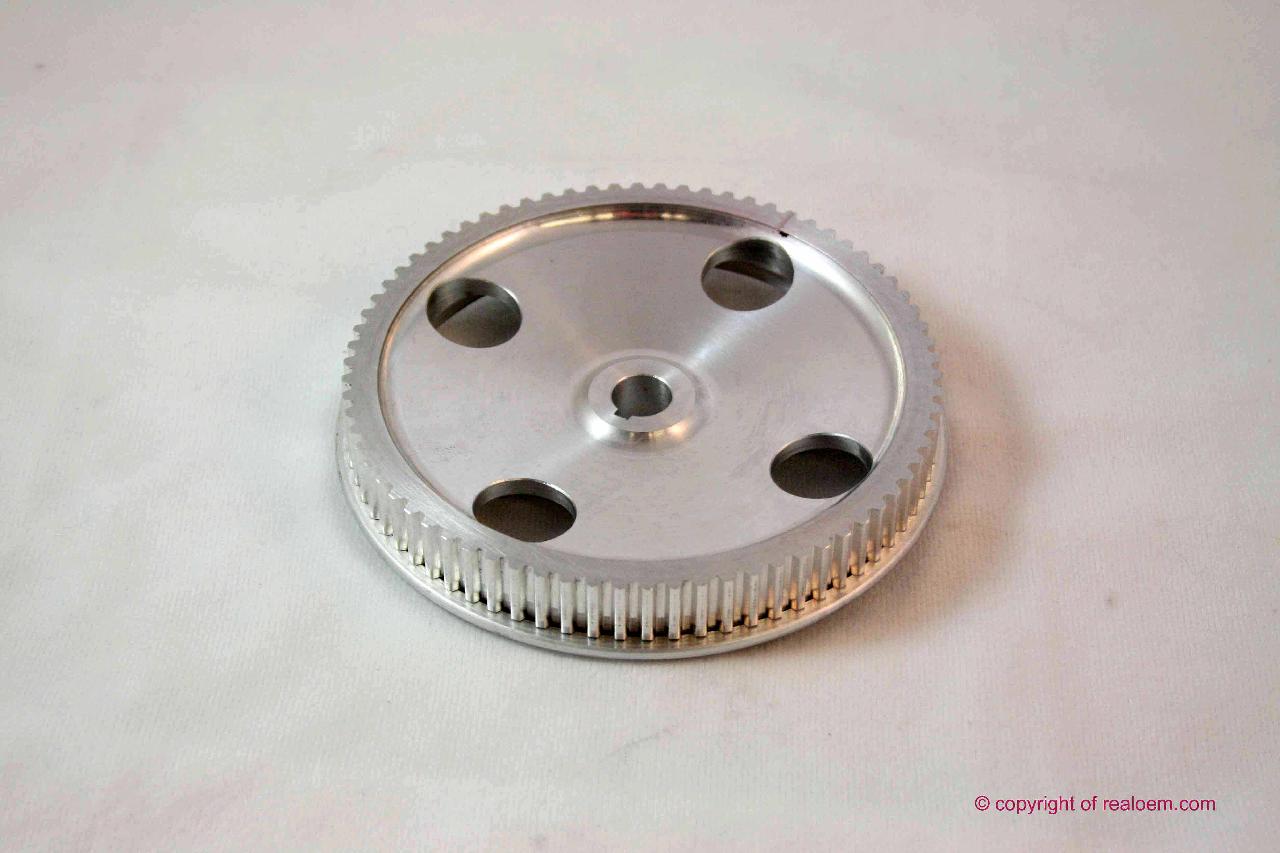

| 04 | Gear wheel | 1 | 13521259586 | $78.93 | ENDED | Shop at ECS Tuning | ||||
| 05 | Tension spring | 1 | 01/1970 | 10/1975 | 13511257560 | $14.57 | Shop at ECS Tuning | |||
| 06 | Holder | 1 | 01/1970 | 10/1975 | 13511256806 | ENDED | Shop at ECS Tuning | |||
| 08 | Connection rod | 1 | 13511260343 | $33.97 | ENDED | Shop at ECS Tuning | ||||
| 09 | Ball Cup | 1 | 13511256078 | $9.44 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | A16X20-CU | 4 | 07119963253 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Intermediate shaft | 1 | 13511257035 | $39.27 | Shop at ECS Tuning | |||||
| 12 | Injection valve | M 88 | 4 | 13531252861 | $752.86 | ENDED | Shop at ECS Tuning | |||

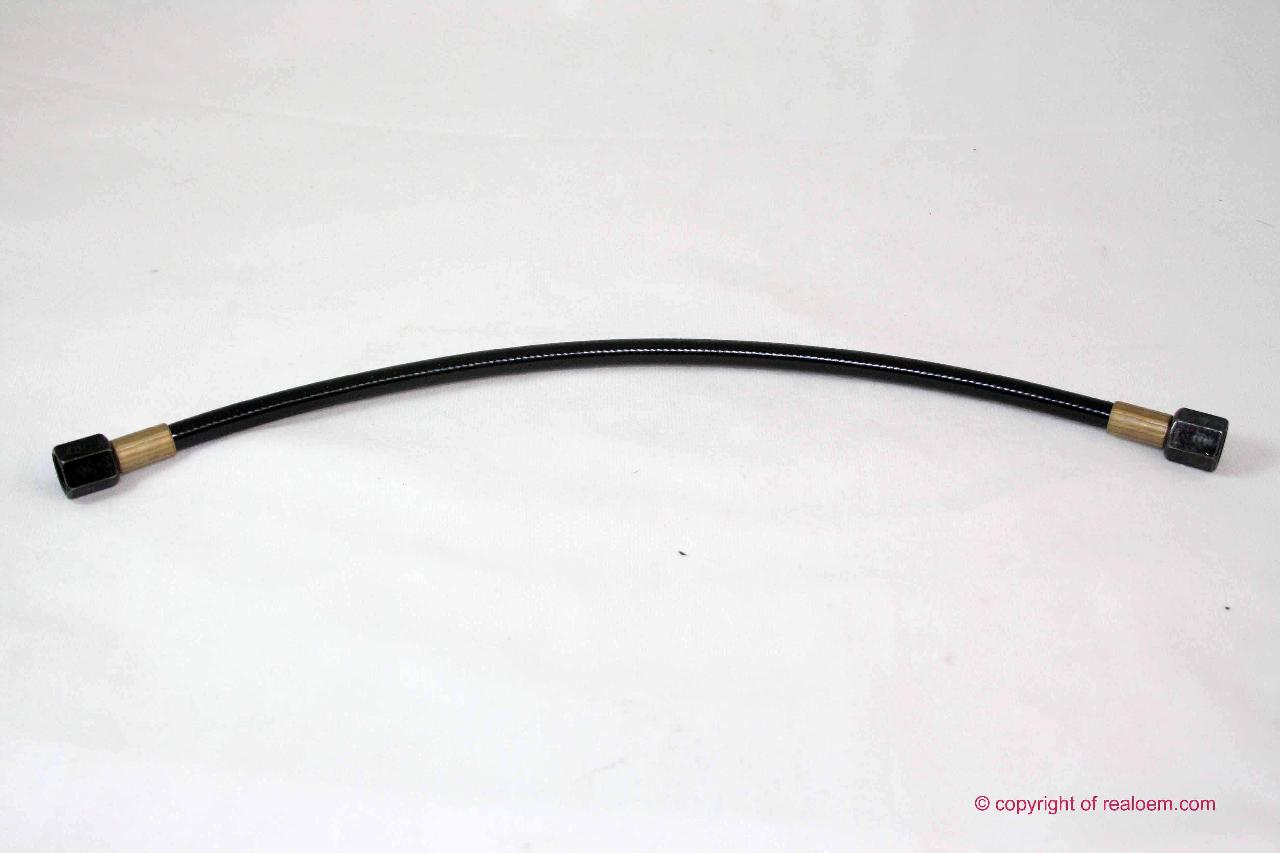

| 13 | Injection pipe 1st cylinder | 1 | 13531262119 | $31.00 | Shop at ECS Tuning | |||||
| 14 | Set, fuel injection line | 1 | 13532357915 | Shop at ECS Tuning | ||||||
| 15 | Set, fuel injection line | 1 | 13532357915 | Shop at ECS Tuning | ||||||
| 16 | Set, fuel injection line | 1 | 13532357915 | Shop at ECS Tuning | ||||||
| 17 | Holder | 1 | 13531254041 | $0.60 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fuel pipe bracket | 1 | 13532446798 | Shop at ECS Tuning | ||||||
| 19 | Holder | 1 | 13531254038 | $1.57 | Shop at ECS Tuning |
