Single parts f injection pump for BMW 1500-2000CS 2000tii (1970)

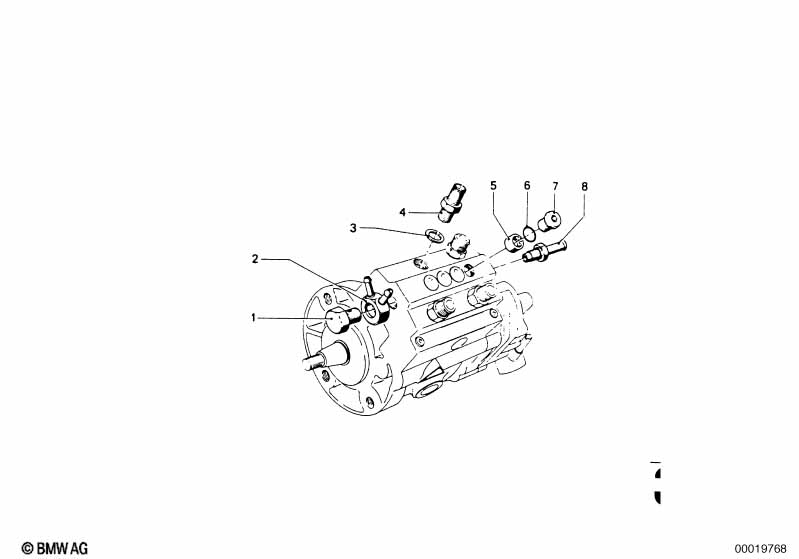

This Single parts f injection pump technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hollow bolt | 1 | 13511257556 | $57.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connector | 1 | 13511256711 | $42.99 | Shop at ECS Tuning | |||||
| 03 | Washer-gasket | 4 | 13511257559 | $4.22 | Shop at ECS Tuning | |||||
| 04 | Pressure valve | 4 | 13511257553 | $122.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | Suction valve | 4 | 13511257554 | $490.41 | Shop at ECS Tuning | |||||
| 06 | O-ring | 4 | 13511257558 | $4.14 | Shop at ECS Tuning | |||||
| 07 | Screw | 4 | 13511257557 | $7.99 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve | 1 | 13511257555 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tii Single parts f injection pump?
- This technical diagram illustrates the Single parts f injection pump within the Fuel preparation system group for the 1500-2000CS 2000tii produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Hollow bolt (Part #13511257556).
- Which models use the hardware listed in this Single parts f injection pump?
- The hardware and components featured in the Single parts f injection pump are specific to the 1500-2000CS 2000tii produced during 1970. These technical specifications ensure that parts like the Hollow bolt (13511257556) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f injection pump assembly?
- Each item in the Single parts f injection pump corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tii, you can identify the Hollow bolt by locating its position on the schematic, which then links to the official BMW part number 13511257556 for the Fuel preparation system section.
