Mechanical fuel injection for BMW 1500-2000CS 2000tii (1970)

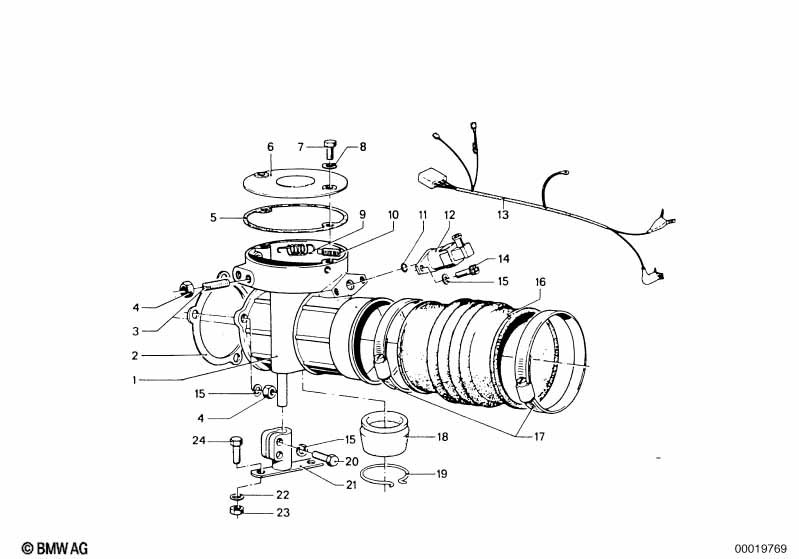

This Mechanical fuel injection technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 01/1970 | 10/1975 | 13540435746 | $1074.01 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket Asbestos Free | 1 | 13541257852 | $47.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Grub screw | M6X35 | 3 | 07119904630 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 13541257372 | $5.92 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 13541254225 | $29.47 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M5X12-8.8 ZN | 2 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Tension spring | 1 | 13541256062 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 10 | Screw | 1 | 13541256163 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 11 | O-ring | 6,3X2,4 | 1 | 07119903045 | $1.67 | Shop at ECS Tuning | ||||
| 12 | Starter valve | 1 | 13641353685 | $115.00 | ENDED | Shop at ECS Tuning | ||||
| 12 | Starter valve | 1 | 13641273278 | $275.97 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cable socket female | 0,3-0,6MM² | 2 | 61131351192 | $1.05 | ENDED | Shop at ECS Tuning | |||
| -- | Plug housing | 2 POL. | 1 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 13 | Wiring set | 1 | 01/1970 | 10/1975 | 61121354671 | $86.37 | ENDED | Shop at ECS Tuning | ||
| 14 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 15 | Wave washer | B6 | 7 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 16 | Rubber boot | 1 | 01/1970 | 10/1975 | 13721255000 | $15.45 | Shop at ECS Tuning | |||
| 17 | Hose clamp | L71-78 | 2 | 01/1970 | 10/1975 | 07129952129 | $1.48 | Shop at ECS Tuning | ||
| 18 | Cap | 1 | 01/1970 | 10/1975 | 13541258015 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X18 | 2 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 21 | Lever | 1 | 13541257036 | ENDED | Shop at ECS Tuning | |||||
| 22 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 23 | Hex nut | M6-8-ZNS3 | 1 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 23 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tii Mechanical fuel injection?
- This technical diagram illustrates the Mechanical fuel injection within the Fuel preparation system group for the 1500-2000CS 2000tii produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13540435746).
- Which models use the hardware listed in this Mechanical fuel injection?
- The hardware and components featured in the Mechanical fuel injection are specific to the 1500-2000CS 2000tii produced during 1970. These technical specifications ensure that parts like the Throttle Housing Assy (13540435746) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanical fuel injection assembly?
- Each item in the Mechanical fuel injection corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tii, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13540435746 for the Fuel preparation system section.
