Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 1500-2000CS 1800 (1965)

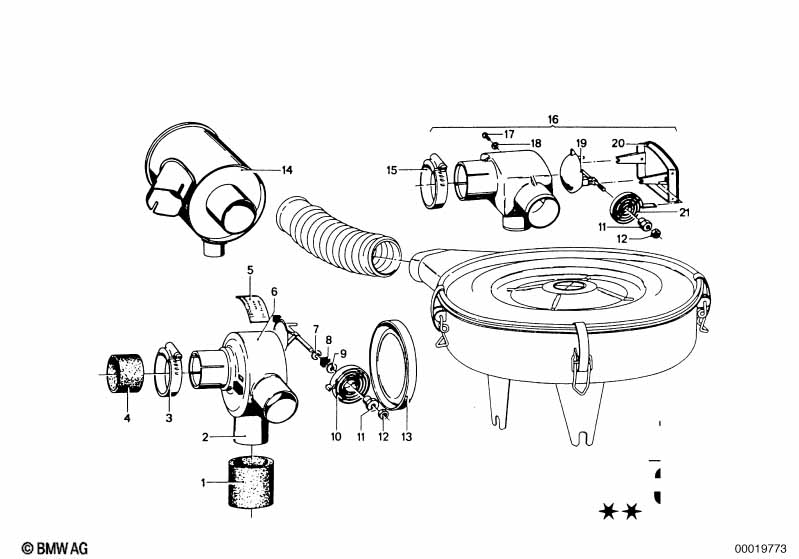

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1965.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bushing | 1 | 09/1963 | 06/1971 | 13720642146 | $1.02 | ENDED | Shop at ECS Tuning | ||
| 03 | Hose clamp | L=53-60MM | 1 | 09/1963 | 06/1971 | 07129952123 | $1.78 | Shop at ECS Tuning | ||
| 04 | backup ring | 1 | 09/1963 | 06/1971 | 13730742135 | ENDED | Shop at ECS Tuning | |||
| 05 | Label | 1 | 09/1963 | 06/1971 | 51140642124 | ENDED | Shop at ECS Tuning | |||
| 06 | Rubber grommet | 1 | 09/1963 | 06/1971 | 13730043816 | ENDED | Shop at ECS Tuning | |||
| 07 | Lock Ring | D5,0 | 1 | 09/1963 | 06/1971 | 07129934312 | $0.56 | ENDED | Shop at ECS Tuning | |
| 08 | Grommet | 2 | 09/1963 | 06/1971 | 13720642120 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 1 | 09/1963 | 06/1971 | 13730642119 | $0.40 | ENDED | Shop at ECS Tuning | ||
| 10 | Retainer spring | 1 | 09/1963 | 06/1971 | 11620543449 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover | 1 | 09/1963 | 06/1971 | 13720642114 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- This technical diagram illustrates the Intake silencer / Filter cartridge Intake silencer / Filter cartridge within the Fuel preparation system group for the 1500-2000CS 1800 produced during 1965. It provides a detailed exploded view of the components, identifying key parts such as the Bushing (Part #13720642146).
- Which models use the hardware listed in this Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- The hardware and components featured in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge are specific to the 1500-2000CS 1800 produced during 1965. These technical specifications ensure that parts like the Bushing (13720642146) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake silencer / Filter cartridge Intake silencer / Filter cartridge assembly?
- Each item in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Bushing by locating its position on the schematic, which then links to the official BMW part number 13720642146 for the Fuel preparation system section.
