Carburetor-float assy/jet for BMW 1500-2000CS 1500 (1962)

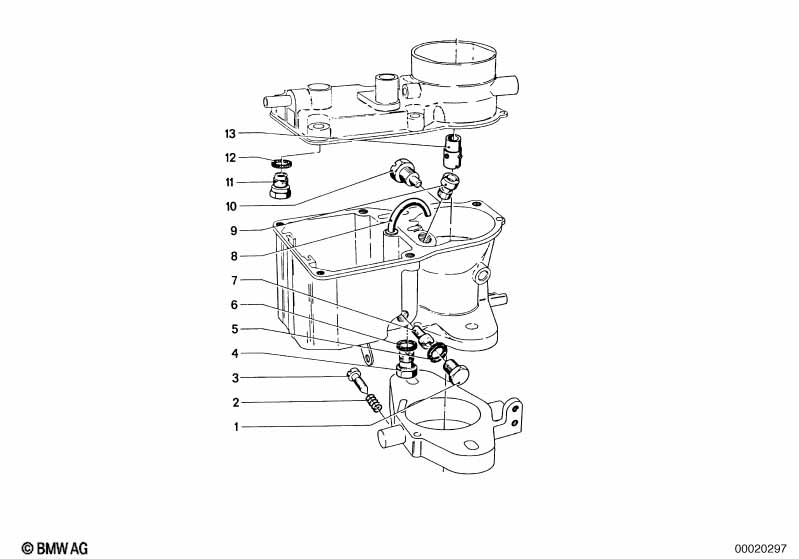

This Carburetor-float assy/jet technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Screw plug | 1 | 13110639182 | $5.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Compression spring | 1 | 13111250707 | $1.85 | ENDED | Shop at ECS Tuning | ||||
| 03 | Idling mixture screw | 1 | 13111265930 | $6.36 | ENDED | Shop at ECS Tuning | ||||
| 04 | Enriching valve | 1 | 13110639284 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 1 | 13110639151 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 1 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 07 | Main jet | 135 | 1 | 02/1962 | 12/1964 | 13110639119 | $13.84 | ENDED | Shop at ECS Tuning | |
| 08 | Injection tube | 100 | 1 | 13111256965 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 09 | Jet | 1 | 02/1962 | 12/1964 | 13110639125 | ENDED | Shop at ECS Tuning | |||
| according to choice | ||||||||||
| 10 | Idling jet | 45 | 1 | 13110539228 | $7.44 | ENDED | Shop at ECS Tuning | |||
| 10 | Idling jet | G 42,5 | 1 | 13111257544 | $8.86 | ENDED | Shop at ECS Tuning | |||
| 11 | Float valve assy | 1 | 13111271963 | $27.04 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 1 | 02/1962 | 12/1971 | 13111255586 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
