Carburetor mounting parts for BMW 1500-2000CS 1800ti (1964)

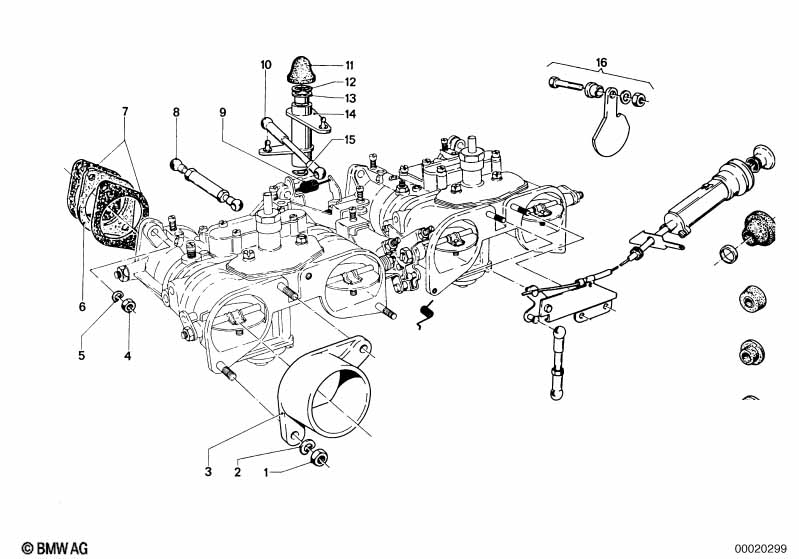

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 40 Phh | |||||||||
| 01 | Hex nut | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B6 | 8 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Intake manifold | 2 | 13720639048 | ENDED | Shop at ECS Tuning | |||||
| 03 | Intake manifold | 2 | 13720639055 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-8-ZNS3 | 8 | 08/1971 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Insulator | 4 | 13110639028 | $7.81 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 8 | 13119067015 | $9.92 | Shop at ECS Tuning | |||||
| 08 | Rod | 1 | 01/1964 | 12/1968 | 13210642198 | ENDED | Shop at ECS Tuning | |||
| 09 | Tension spring | 2 | 13111253625 | $11.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spring | 2 | 13210642187 | $4.24 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cap | 1 | 13210642184 | $155.12 | ENDED | Shop at ECS Tuning | ||||
| 12 | Circlip | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 13 | Bush | 2 | 13210743138 | ENDED | Shop at ECS Tuning | |||||
| 14 | Lever | 1 | 13210642191 | ENDED | Shop at ECS Tuning | |||||
| 15 | Wave washer | 1 | 13110542303 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 16 | Clamping bolt | 1 | 13119057338 | $6.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800ti Carburetor mounting parts?
- This technical diagram illustrates the Carburetor mounting parts within the Fuel preparation system group for the 1500-2000CS 1800ti produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07119905543).
- Which models use the hardware listed in this Carburetor mounting parts?
- The hardware and components featured in the Carburetor mounting parts are specific to the 1500-2000CS 1800ti produced during 1964. These technical specifications ensure that parts like the Hex nut (07119905543) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor mounting parts assembly?
- Each item in the Carburetor mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800ti, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07119905543 for the Fuel preparation system section.
