Carburetor-float assy/jet for BMW 1500-2000CS 1800tiSA (1965)

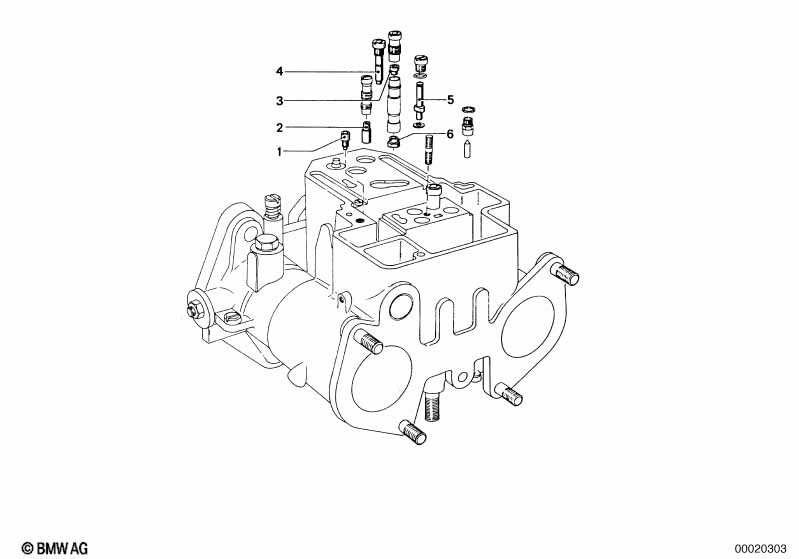

This Carburetor-float assy/jet technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800tiSA. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1965.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Weber 45 Dcoe | |||||||||
| 01 | Valve | 2 | 13110639430 | ENDED | Shop at ECS Tuning | |||||
| 02 | Idling jet | F8/0,45 | 2 | 13110639423 | ENDED | Shop at ECS Tuning | ||||
| 03 | BMW Classic | 2 | 13110639421 | ENDED | Shop at ECS Tuning | |||||
| 04 | BMW Classic | 2 | 13110639418 | ENDED | Shop at ECS Tuning | |||||
| 05 | BMW Classic | 2 | 13110639422 | ENDED | Shop at ECS Tuning | |||||
| 06 | BMW Classic | 2 | 13110639419 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800tiSA Carburetor-float assy/jet?
- This technical diagram illustrates the Carburetor-float assy/jet within the Fuel preparation system group for the 1500-2000CS 1800tiSA produced during 1965. It provides a detailed exploded view of the components, identifying key parts such as the Valve (Part #13110639430).
- Which models use the hardware listed in this Carburetor-float assy/jet?
- The hardware and components featured in the Carburetor-float assy/jet are specific to the 1500-2000CS 1800tiSA produced during 1965. These technical specifications ensure that parts like the Valve (13110639430) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor-float assy/jet assembly?
- Each item in the Carburetor-float assy/jet corresponds to the numbered list below the illustration. For the 1500-2000CS 1800tiSA, you can identify the Valve by locating its position on the schematic, which then links to the official BMW part number 13110639430 for the Fuel preparation system section.
