Air cleaner housing for BMW 1500-2000CS 1800ti (1964)

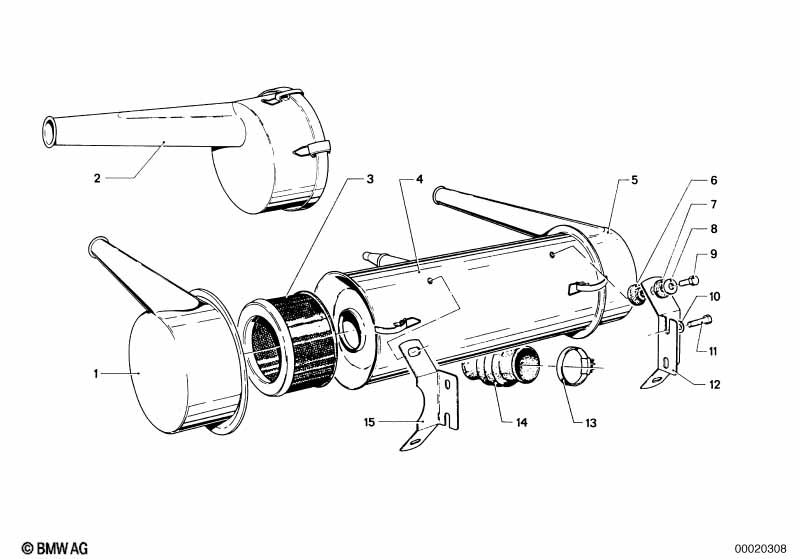

This Air cleaner housing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 01/1964 | 02/1971 | 13711251885 | ENDED | Shop at ECS Tuning | |||
| 03 | Air filter element | 2 | 13721254660 | $19.10 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 01/1964 | 02/1971 | 13711253778 | ENDED | Shop at ECS Tuning | |||
| 06 | Rubber washer | 4 | 16114080148 | $2.24 | Shop at ECS Tuning | |||||
| 07 | Washer | 4 | 13720043716 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X22-8.8-ZNS3 | 4 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Bracket rear | 1 | 13720642123 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L59-66 | 7 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 14 | Rubber boot | 4 | 13720642158 | $12.79 | Shop at ECS Tuning | |||||
| 15 | Holder | 1 | 13720742105 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800ti Air cleaner housing?
- This technical diagram illustrates the Air cleaner housing within the Fuel preparation system group for the 1500-2000CS 1800ti produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #13711251885).
- Which models use the hardware listed in this Air cleaner housing?
- The hardware and components featured in the Air cleaner housing are specific to the 1500-2000CS 1800ti produced during 1964. These technical specifications ensure that parts like the Cover (13711251885) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cleaner housing assembly?
- Each item in the Air cleaner housing corresponds to the numbered list below the illustration. For the 1500-2000CS 1800ti, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 13711251885 for the Fuel preparation system section.
