Carburetor cap/piston/float for BMW 2500-3.3Li 2800 (1969)

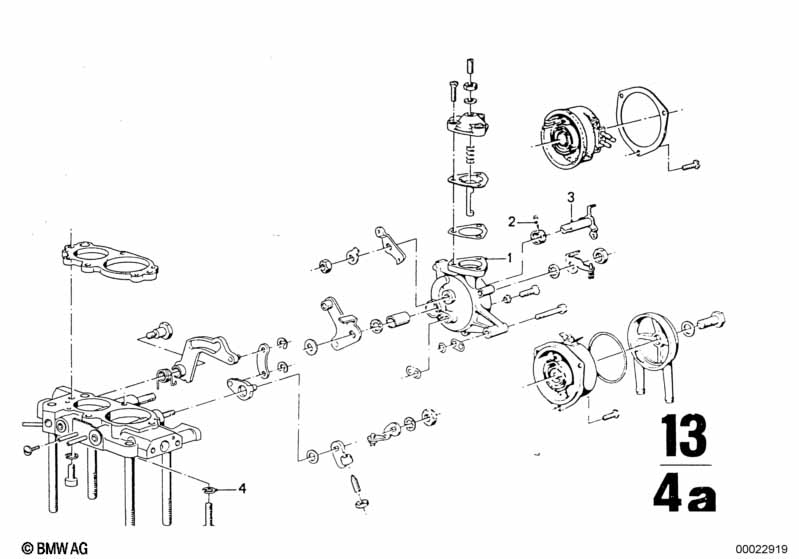

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Choke body | 2 | 01/1969 | 05/1971 | 13111253018 | ENDED | Shop at ECS Tuning | |||
| 01 | Choke body | 2 | 04/1969 | 02/1977 | 13111257849 | ENDED | Shop at ECS Tuning | |||
| 02 | Retainer spring | 2 | 01/1969 | 02/1977 | 13111252686 | ENDED | Shop at ECS Tuning | |||
| 03 | Driving dog arm | 2 | 13111253023 | $9.60 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring washer | 8 | 13110539119 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
