Carburetor cap/piston/float for BMW 2500-3.3Li 3.3L (1974)

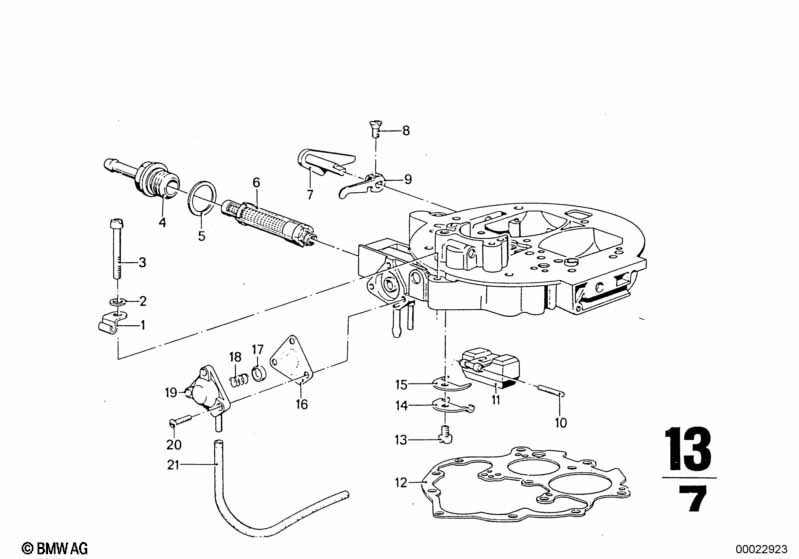

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 2 | 09/1973 | 02/1977 | 13111260398 | ENDED | Shop at ECS Tuning | |||
| 02 | Washer | 2 | 13111259651 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | 4 | 13111253073 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | 2 | 13111258174 | ENDED | Shop at ECS Tuning | |||||
| 04 | Connector | 2 | 09/1973 | 02/1977 | 13111260441 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | 2 | 09/1973 | 02/1977 | 13111260440 | ENDED | Shop at ECS Tuning | |||
| 06 | Strainer | 2 | 09/1973 | 02/1977 | 13111289007 | ENDED | Shop at ECS Tuning | |||
| 07 | Lever | 2 | 13111253071 | ENDED | Shop at ECS Tuning | |||||
| 08 | Kit pump cover | 2 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lever | 2 | 13111253072 | ENDED | Shop at ECS Tuning | |||||
| 10 | Float axis | 2 | 13110639207 | $0.88 | ENDED | Shop at ECS Tuning | ||||
| 11 | Set float assy | 2 | 13111709119 | $191.16 | ENDED | Shop at ECS Tuning | ||||
| 12 | Gasket | 2 | 09/1973 | 02/1977 | 13111264931 | $6.71 | ENDED | Shop at ECS Tuning | ||
| 13 | Fillister-head screw | 2 | 13111261053 | ENDED | Shop at ECS Tuning | |||||
| 14 | Holder | 2 | 05/1971 | 02/1977 | 13111261719 | ENDED | Shop at ECS Tuning | |||
| 15 | Holder | 2 | 13111253052 | ENDED | Shop at ECS Tuning | |||||
| 16 | Diaphragm | 2 | 09/1973 | 02/1977 | 13111260929 | $27.90 | ENDED | Shop at ECS Tuning | ||
| 17 | Spring pocket | 2 | 09/1973 | 02/1977 | 13111260930 | ENDED | Shop at ECS Tuning | |||
| 18 | Compression spring | 2 | 09/1973 | 02/1977 | 13111260931 | ENDED | Shop at ECS Tuning | |||
| 19 | Kit diaphragm | 2 | 09/1973 | 02/1977 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
| 20 | Screw | 6 | 09/1973 | 02/1977 | 13110539234 | $2.34 | ENDED | Shop at ECS Tuning | ||
| 21 | Hose | 2 | 09/1973 | 02/1977 | 13111260932 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
