Carburetor cap/piston/float for BMW 2500-3.3Li 2800 (1969)

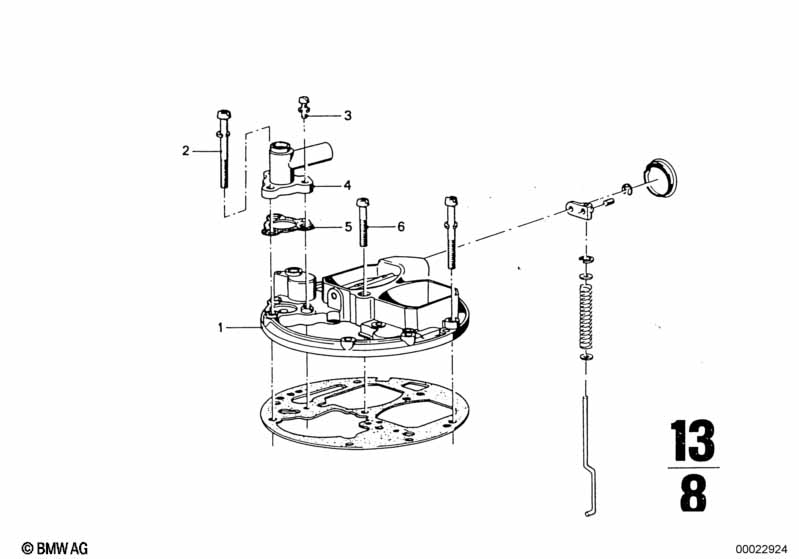

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister-head screw | 6 | 13111260452 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | 2 | 13111261054 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket | 2 | 13111253084 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | 2 | 13111253088 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
