Carburetor cap/piston/float for BMW 2500-3.3Li 2800 (1969)

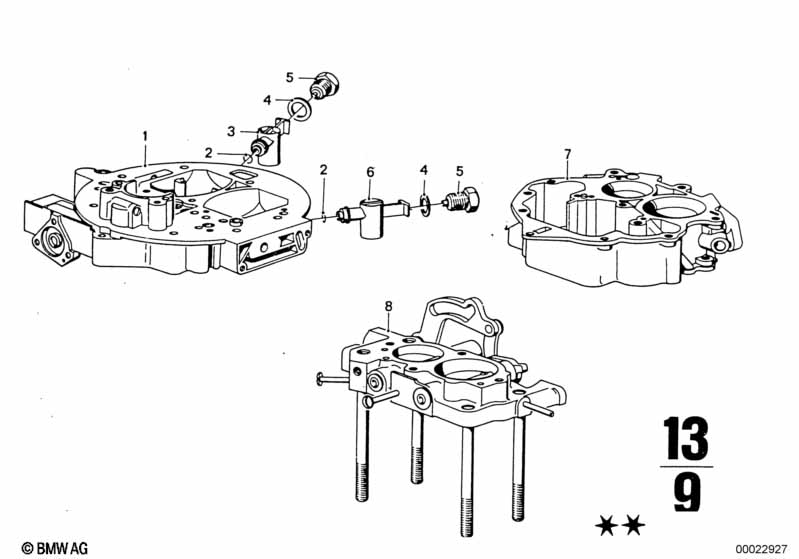

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | O-ring | 4 | 13111255585 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 4 | 13111250721 | ENDED | Shop at ECS Tuning | |||||
| 05 | Screw | 4 | 13111253065 | ENDED | Shop at ECS Tuning | |||||
| 06 | Pre-atomizer | 4 | 13111260433 | $18.08 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Carburetor cap/piston/float?
- This technical diagram illustrates the Carburetor cap/piston/float within the Fuel preparation system group for the 2500-3.3Li 2800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the O-ring (Part #13111255585).
- Which models use the hardware listed in this Carburetor cap/piston/float?
- The hardware and components featured in the Carburetor cap/piston/float are specific to the 2500-3.3Li 2800 produced during 1969. These technical specifications ensure that parts like the O-ring (13111255585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor cap/piston/float assembly?
- Each item in the Carburetor cap/piston/float corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the O-ring by locating its position on the schematic, which then links to the official BMW part number 13111255585 for the Fuel preparation system section.
