Carburetor, jets and pumps for BMW 2500-3.3Li 2800 (1969)

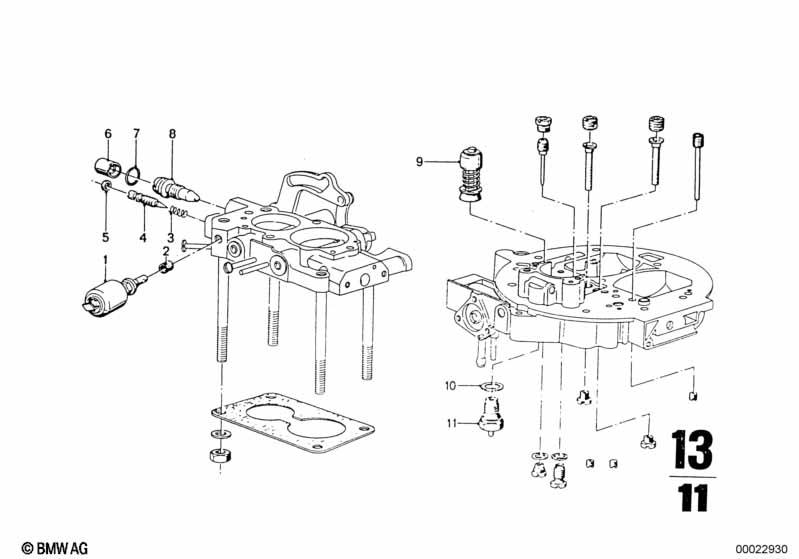

This Carburetor, jets and pumps technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.idle valve | 50 | 2 | 13111260516 | $314.87 | Shop at ECS Tuning | ||||
| 02 | Valve housing | 2 | 11421264924 | $12.61 | Shop at ECS Tuning | |||||
| 03 | Compression spring | 2 | 08/1968 | 02/1977 | 13111250707 | $1.85 | ENDED | Shop at ECS Tuning | ||
| 04 | Idling mixture screw | 2 | 08/1968 | 02/1977 | 13111255990 | $4.52 | Shop at ECS Tuning | |||
| 09 | Pump piston | 2 | 13111285451 | $47.31 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | 2 | 13110539245 | $3.85 | Shop at ECS Tuning | |||||
| 11 | Float valve assy | 2 | 13111271963 | $27.04 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
