Throttle Housing Assy for BMW 2500-3.3Li 3.0Si (1971)

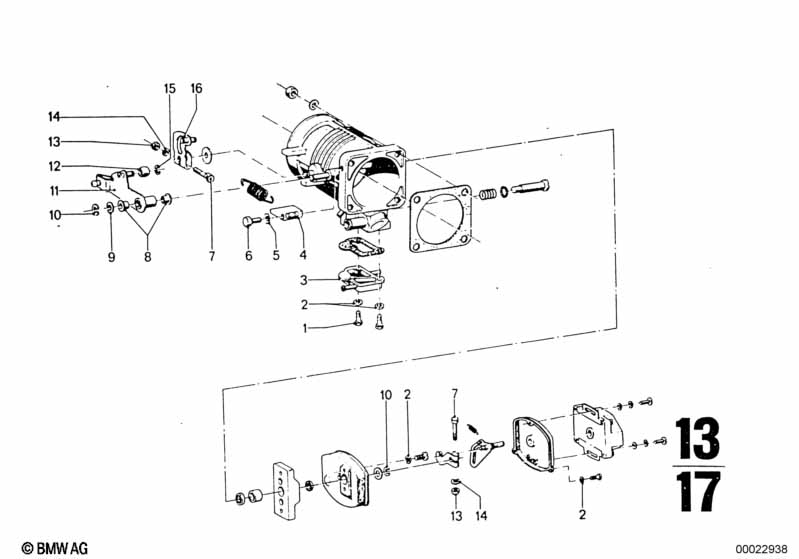

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||

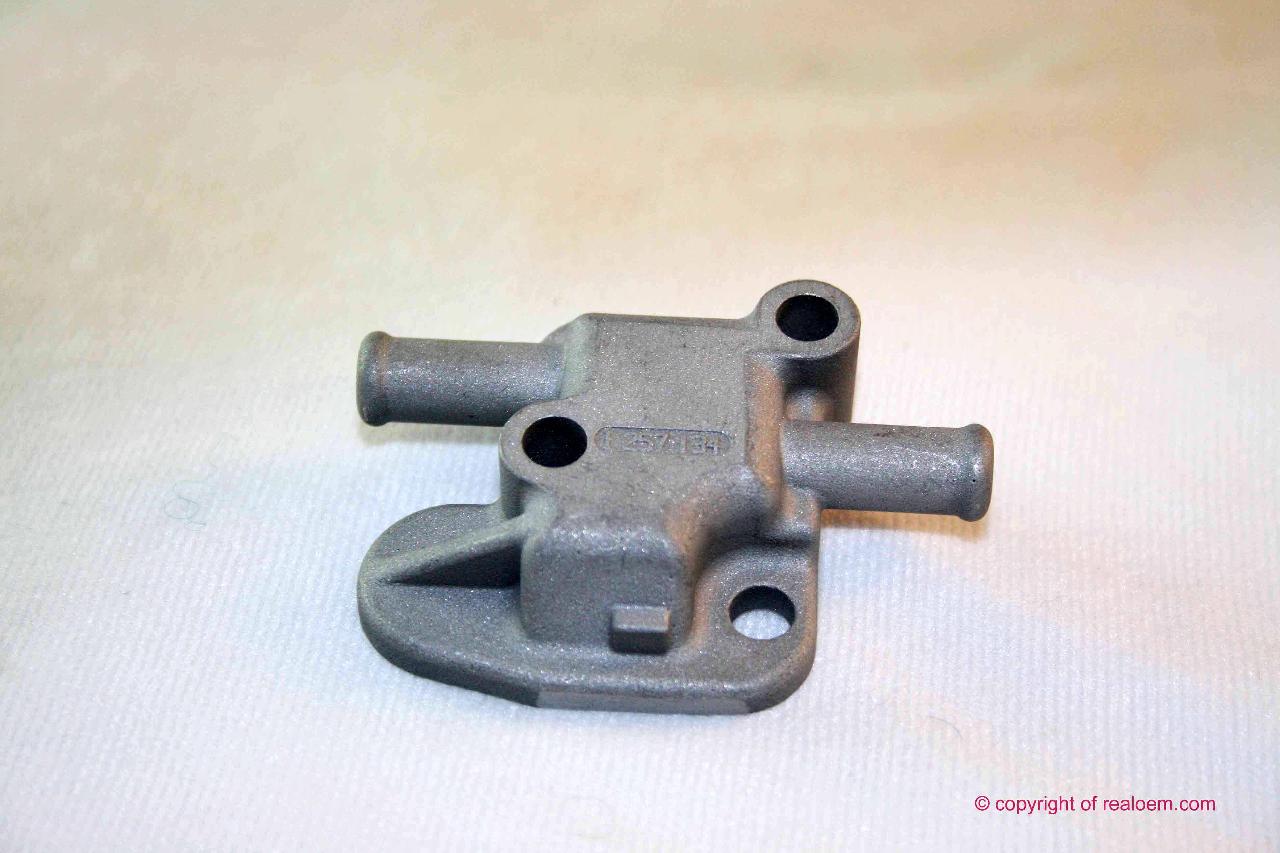

| 03 | Cover | 1 | 13541257133 | $44.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 09/1971 | 02/1977 | 13541257952 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Clamping bolt | 2 | 13541255749 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bush | 2 | 13111276960 | ENDED | Shop at ECS Tuning | |||||
| 09 | Wave washer | 1 | 13110542303 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 10 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 11 | Operating lever | 1 | 09/1971 | 02/1977 | 13541256317 | ENDED | Shop at ECS Tuning | |||
| 12 | Roller | 1 | 13541255757 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 14 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Circlip | 4,0 | 1 | 07119932822 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Throttle lever | 1 | 09/1971 | 02/1977 | 13541257950 | ENDED | Shop at ECS Tuning |
