Throttle Housing Assy for BMW 2500-3.3Li 3.0Si (1971)

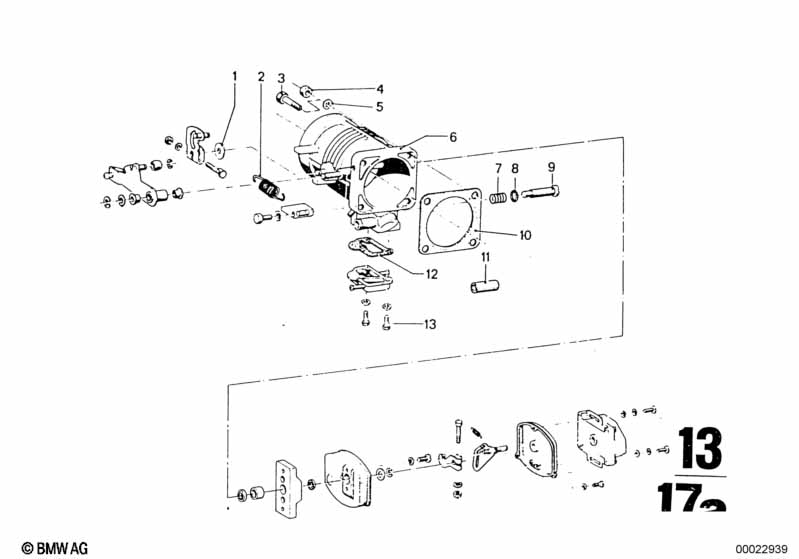

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Tension spring | 2 | 09/1971 | 02/1977 | 13541258049 | $1.21 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M8X30-ZN | 4 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Hex nut wiht flange | M8 | 4 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Throttle Housing Assy | 1 | 09/1971 | 07/1976 | 13541266024 | $243.29 | ENDED | Shop at ECS Tuning | ||
| 06 | Throttle Housing Assy | 1 | 09/1971 | 02/1977 | 13541256363 | $407.94 | ENDED | Shop at ECS Tuning | ||
| 07 | Compression spring | 1 | 09/1971 | 02/1977 | 13541256324 | ENDED | Shop at ECS Tuning | |||
| 09 | Throttle screw | 1 | 09/1971 | 02/1977 | 13541256323 | ENDED | Shop at ECS Tuning | |||

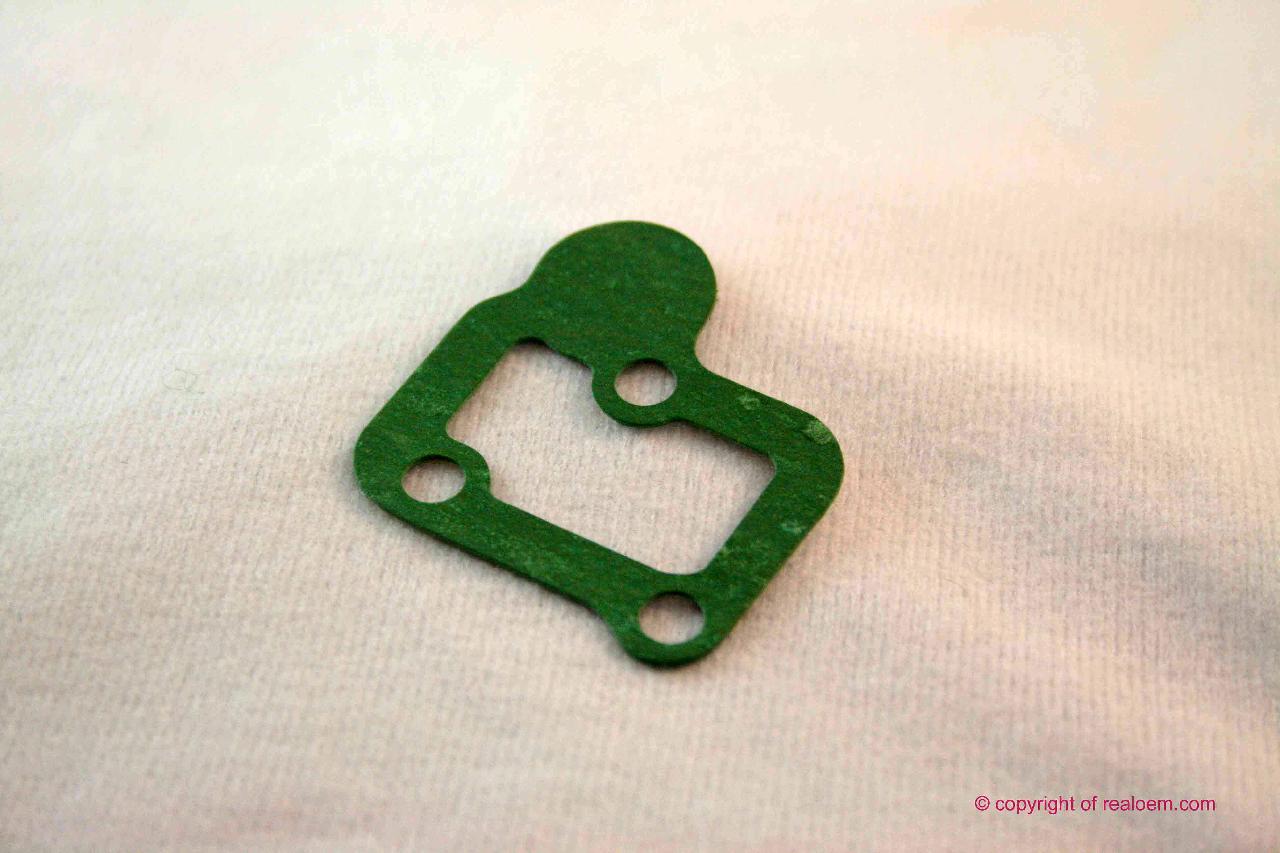

| 10 | Gasket Asbestos Free | 1 | 13541256447 | $2.57 | Shop at ECS Tuning | |||||
| 12 | Gasket Asbestos Free | 1 | 13549065690 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M5X20-8.8 ZNS | 2 | 07119913116 | $1.20 | Shop at ECS Tuning |
