Throttle Housing Assy for BMW 2500-3.3Li 3.0Si (1971)

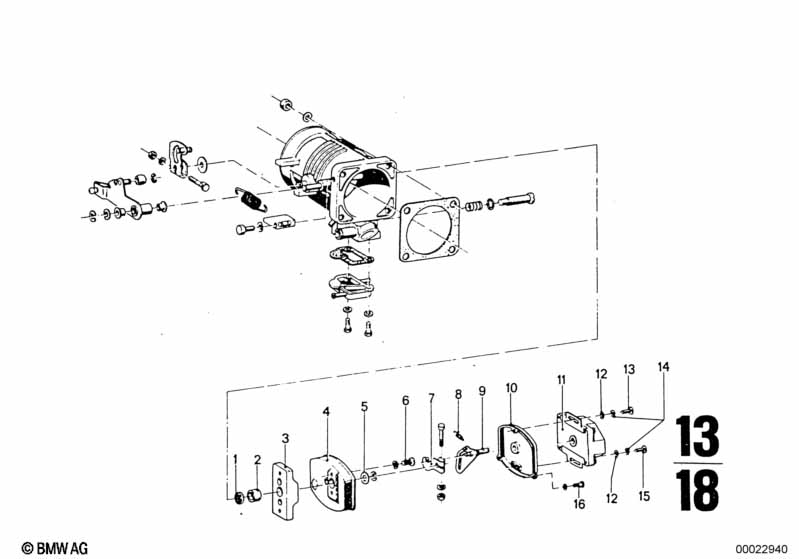

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket ring | 2 | 13541257265 | ENDED | Shop at ECS Tuning | |||||
| 04 | Housing | 1 | 09/1971 | 02/1977 | 13541257061 | ENDED | Shop at ECS Tuning | |||
| 05 | Shim | 19X8X0,1 | X | 09/1971 | 02/1977 | 13541256344 | ENDED | Shop at ECS Tuning | ||
| 05 | Shim | 19X8X1,0 | X | 09/1971 | 02/1977 | 13541256347 | ENDED | Shop at ECS Tuning | ||
| 05 | Shim | 18X8X0,2 | X | 09/1971 | 02/1977 | 13541312414 | $1.77 | ENDED | Shop at ECS Tuning | |
| 05 | Shim | 18X8X0,5 | X | 09/1971 | 02/1977 | 13541312415 | $1.12 | ENDED | Shop at ECS Tuning | |
| 06 | Fillister head screw | M5X10 | 2 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M5X16 | 1 | 09/1971 | 02/1977 | 07119906415 | $0.16 | Shop at ECS Tuning | ||
| 06 | Fillister head screw | M5X12-ZN | 2 | 09/1971 | 02/1977 | 07119907627 | $0.43 | Shop at ECS Tuning | ||
| 07 | Lever | 1 | 09/1971 | 02/1977 | 13541257954 | ENDED | Shop at ECS Tuning | |||
| 08 | Tension spring | 1 | 09/1971 | 02/1977 | 13541257958 | ENDED | Shop at ECS Tuning | |||
| 09 | Lever | 1 | 09/1971 | 02/1977 | 13541257956 | $28.28 | ENDED | Shop at ECS Tuning | ||
| 10 | Cover | 1 | 09/1971 | 02/1977 | 13541257074 | ENDED | Shop at ECS Tuning | |||
| 11 | Throttle valve switch | 1 | 09/1971 | 02/1977 | 13631358436 | $161.91 | ENDED | Shop at ECS Tuning | ||
| 12 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M4X25 | 1 | 09/1971 | 02/1977 | 07119907685 | $1.18 | Shop at ECS Tuning | ||
| 14 | Wave washer | B4 | 2 | 09/1971 | 02/1977 | 07119932033 | $0.09 | Shop at ECS Tuning | ||
| 15 | Fillister head screw | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | M5X20 | 2 | 09/1971 | 02/1977 | 07119906853 | $0.40 | Shop at ECS Tuning |
