Fuel lines and pressure regulator for BMW 2500-3.3Li 3.3Li (1975)

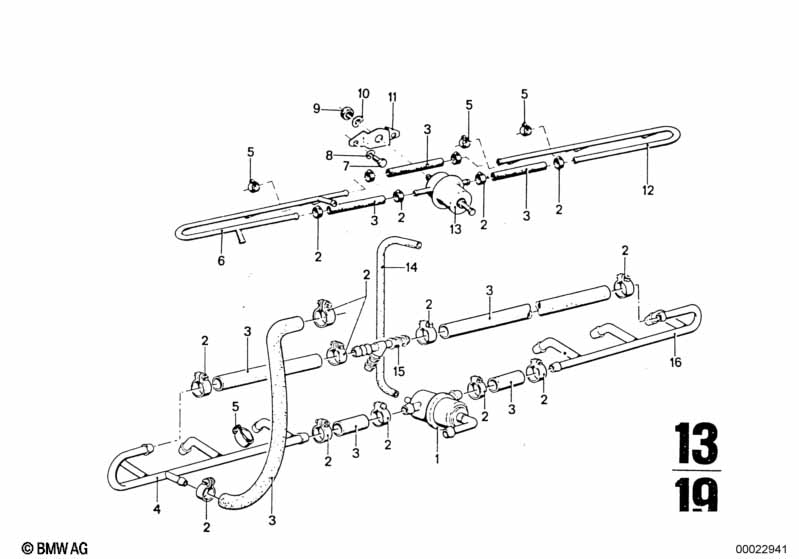

This Fuel lines and pressure regulator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure regulator | 1 | 09/1973 | 02/1977 | 13531260789 | $128.16 | ENDED | Shop at ECS Tuning | ||
| 02 | Hose clamp | D=12MM | 10 | 13531257243 | $2.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Fuel pipe 1st-3rd cylinder | 1 | 09/1973 | 02/1977 | 13531261081 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 15 | Distribution piece | 1 | 09/1973 | 02/1977 | 13311251059 | $1.00 | Shop at ECS Tuning | |||
| 16 | Fuel pipe 4th-6th cylinder | 1 | 09/1973 | 02/1977 | 13531261082 | $22.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Fuel lines and pressure regulator?
- This technical diagram illustrates the Fuel lines and pressure regulator within the Fuel preparation system group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Pressure regulator (Part #13531260789).
- Which models use the hardware listed in this Fuel lines and pressure regulator?
- The hardware and components featured in the Fuel lines and pressure regulator are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Pressure regulator (13531260789) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel lines and pressure regulator assembly?
- Each item in the Fuel lines and pressure regulator corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Pressure regulator by locating its position on the schematic, which then links to the official BMW part number 13531260789 for the Fuel preparation system section.
