Fuel injection system/Injection valve for BMW 2500-3.3Li 3.3Li (1975)

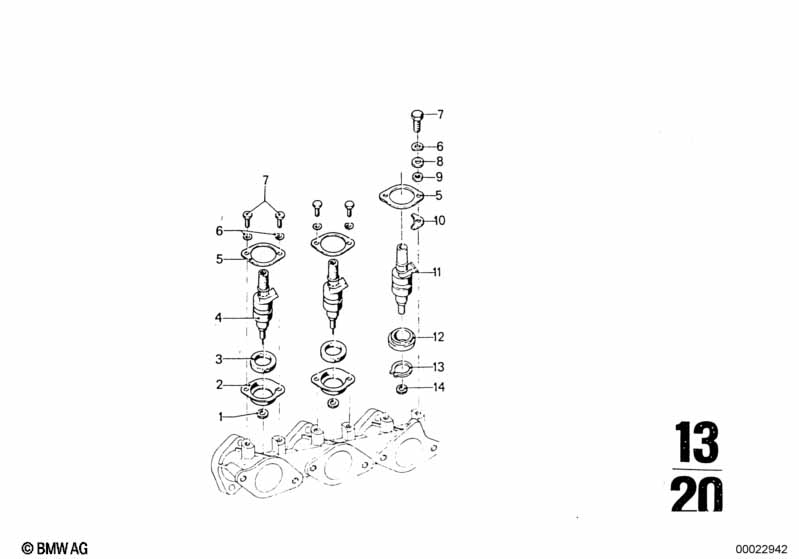

This Fuel injection system/Injection valve technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Supporting plate | 6 | 13641256446 | $3.42 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B6 | 12 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X16-8.8-ZNS3 | 12 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-ZNNIV SI | 12 | 09/1973 | 02/1977 | 07119904202 | Shop at ECS Tuning | |||
| 09 | Insulating washer | 12 | 09/1973 | 02/1977 | 13641262255 | $0.28 | Shop at ECS Tuning | |||
| 10 | Insulating cover | 12 | 09/1973 | 02/1977 | 13641261803 | $0.92 | Shop at ECS Tuning | |||
| 11 | Injection valve | 6 | 09/1973 | 02/1977 | 13641363918 | $169.37 | ENDED | Shop at ECS Tuning | ||
| 12 | Rubber Ring | 6 | 09/1973 | 02/1977 | 13641261731 | $2.09 | Shop at ECS Tuning | |||
| 13 | Lock Ring | 22X1,2 | 6 | 09/1973 | 02/1977 | 07119934151 | ENDED | Shop at ECS Tuning | ||
| 14 | Rubber Ring | 6 | 09/1973 | 02/1977 | 13641358349 | $3.41 | Shop at ECS Tuning |
