Control unit for BMW 2500-3.3Li 3.0Si (1971)

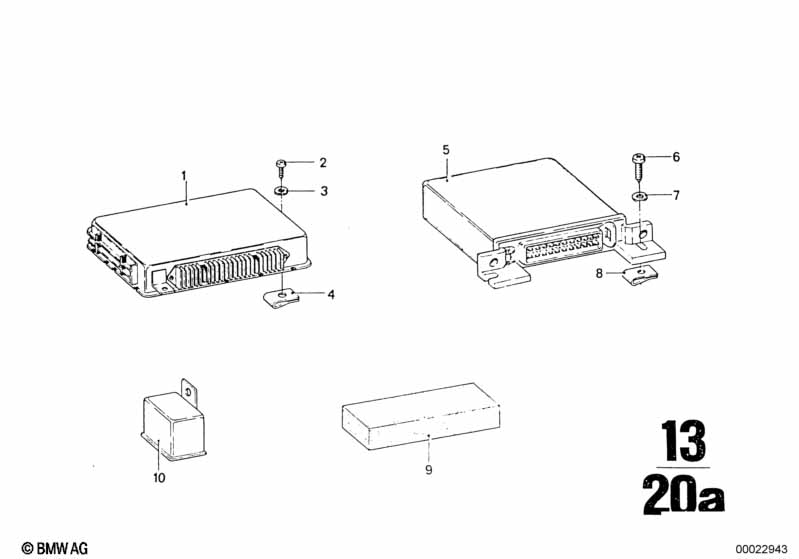

This Control unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit | D-JETRONIC | 1 | 09/1971 | 02/1977 | 13611355309 | $3411.54 | ENDED | Shop at ECS Tuning | |
| 02 | Fillister head self-tapping screw | ST4,8X16 Z2 | 3 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||

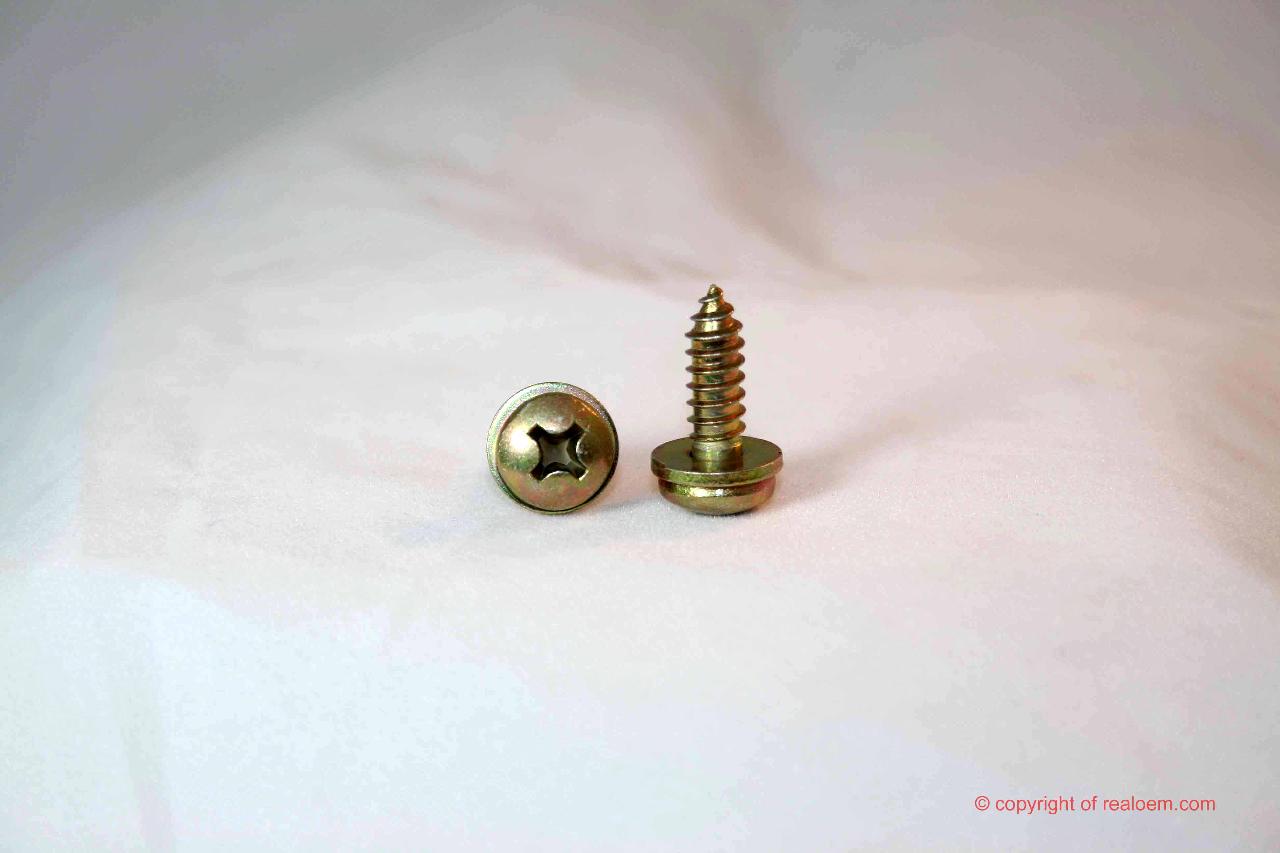

| 06 | Fillister head self-tapping screw | ST6,3X19-Z1 | 2 | 07119906794 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 10 | Relay | 1 | 09/1971 | 02/1977 | 61311353361 | $17.30 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Control unit | D-JETRONIC | X | 09/1971 | 02/1977 | 13611355309 | $3411.54 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Control unit?
- This technical diagram illustrates the Control unit within the Fuel preparation system group for the 2500-3.3Li 3.0Si produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Control unit (Part #13611355309).
- Which models use the hardware listed in this Control unit?
- The hardware and components featured in the Control unit are specific to the 2500-3.3Li 3.0Si produced during 1971. These technical specifications ensure that parts like the Control unit (13611355309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit assembly?
- Each item in the Control unit corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Control unit by locating its position on the schematic, which then links to the official BMW part number 13611355309 for the Fuel preparation system section.
