Valves/Pipes of fuel injection system for BMW 2500-3.3Li 3.0Si (1971)

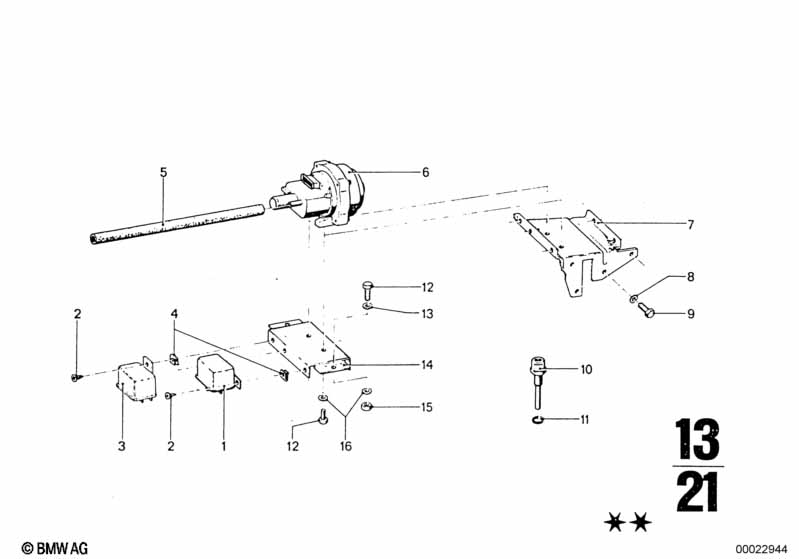

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter motor relay | 1 | 61311352156 | $39.55 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw | 3 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 03 | Cold start relay | 1 | 61311354858 | $99.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,2-1-ZNS3 | 3 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 06 | Fuel injection system-ressure sensor | 1 | 13631360678 | $1046.93 | ENDED | Shop at ECS Tuning | ||||
| 10 | Intake air temperature sensor | 1 | 13621353331 | $84.44 | ENDED | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A8X11,5-AL | 1 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 14 | Carrier | 1 | 09/1971 | 02/1977 | 13631353332 | ENDED | Shop at ECS Tuning | |||
| 15 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning |
