Cable harness for BMW 2500-3.3Li 3.0Si (1971)

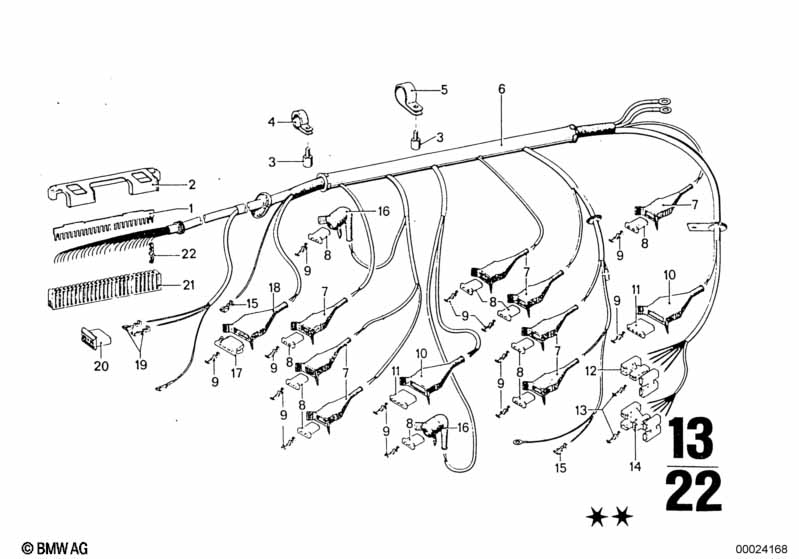

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 61131356137 | ENDED | Shop at ECS Tuning | |||||
| 02 | Handle | 1 | 61131353435 | ENDED | Shop at ECS Tuning | |||||
| 03 | Extension | 3 | 13651353339 | $3.28 | ENDED | Shop at ECS Tuning | ||||
| 04 | Clamp | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Pipe clamp | 2 | 12121350635 | $1.61 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiring harness for fuel injection | 1 | 61121356010 | $1344.78 | ENDED | Shop at ECS Tuning | ||||
| 07 | Protection cap | 8 | 61131352793 | $11.80 | ENDED | Shop at ECS Tuning | ||||
| 08 | Receptacle housing | 1 POL. | 9 | 61131352607 | $3.36 | Shop at ECS Tuning | ||||
| 09 | Cable socket female | 0,3-0,6MM² | 25 | 61131351192 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 10 | Protection cap | 2 | 13651353478 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plug housing | 2 | 13651353481 | ENDED | Shop at ECS Tuning | |||||
| 12 | Plug housing | 1 | 61131354373 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cable socket female | B=8/L=20 | 9 | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 14 | Plug housing | 1 | 13651355044 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cable socket female | B=7,5/L=19,2MM | 2 | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 16 | Protection cap | 2 | 61131354696 | Shop at ECS Tuning | ||||||
| 17 | Plug housing | 1 | 13651353482 | ENDED | Shop at ECS Tuning | |||||
| 18 | Protection cap | 1 | 13651353479 | ENDED | Shop at ECS Tuning | |||||
| 19 | Cable socket female | 1,0-2,5MM² | 2 | 61131352810 | $1.24 | ENDED | Shop at ECS Tuning | |||
| 20 | Plug housing | 1 | 61131353828 | ENDED | Shop at ECS Tuning | |||||
| 21 | Plug housing | 1 | 61131353436 | ENDED | Shop at ECS Tuning | |||||
| 22 | Contact socket | B=5,3/L=19 | 24 | 61131353463 | $0.79 | ENDED | Shop at ECS Tuning |
