Air cleaner for BMW 2500-3.3Li 3.0Si (1971)

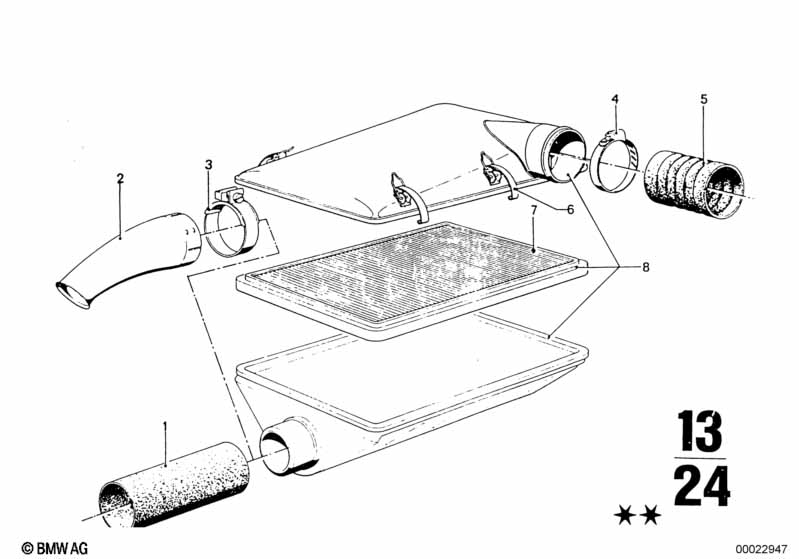

This Air cleaner technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 13731255272 | ENDED | Shop at ECS Tuning | |||||
| 02 | Intake manifold | 1 | 13711259493 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L83-90 | 2 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||

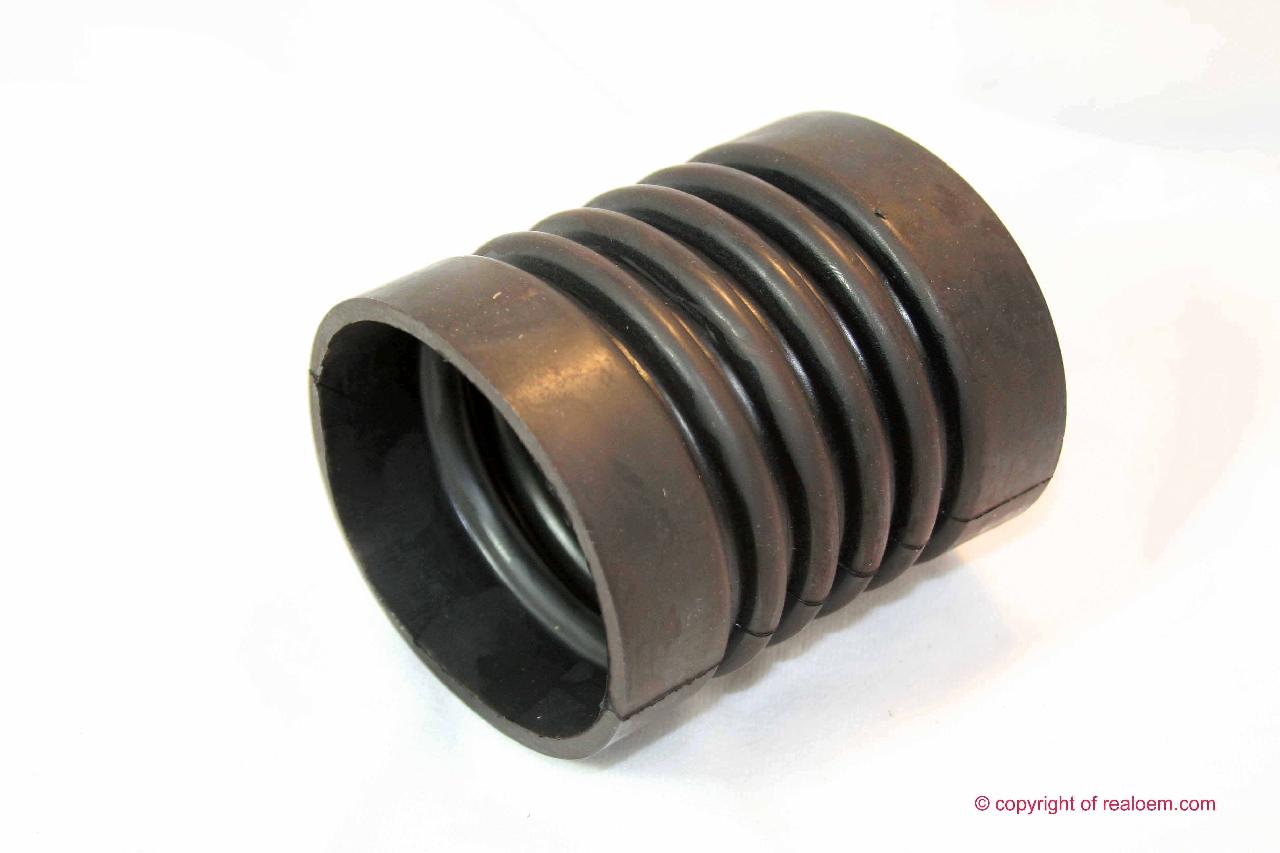

| 05 | Rubber boot | 1 | 13721255108 | $17.74 | Shop at ECS Tuning | |||||
| 06 | Wire-strap | 7 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 07 | Air filter element | 1 | 13721256390 | ENDED | Shop at ECS Tuning | |||||
| 08 | Intake muffler | 1 | 13721256550 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 08 | Intake muffler | 1 | 13711259511 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
