Fuel pump/fuel filter for BMW 1500-2000CS 1800 (1969)

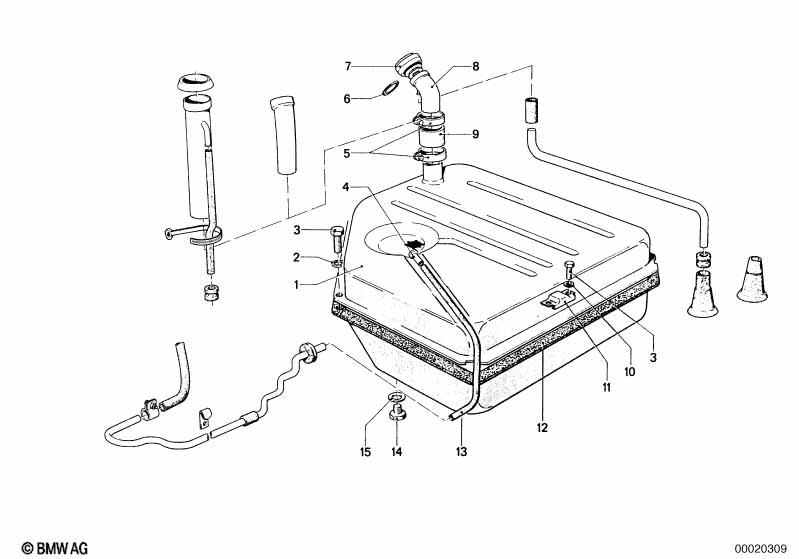

This Fuel pump/fuel filter technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank | 55L | 1 | 16111107592 | $767.54 | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-200HV-ZNS3 | 5 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M6X18 | 5 | 07119919781 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||

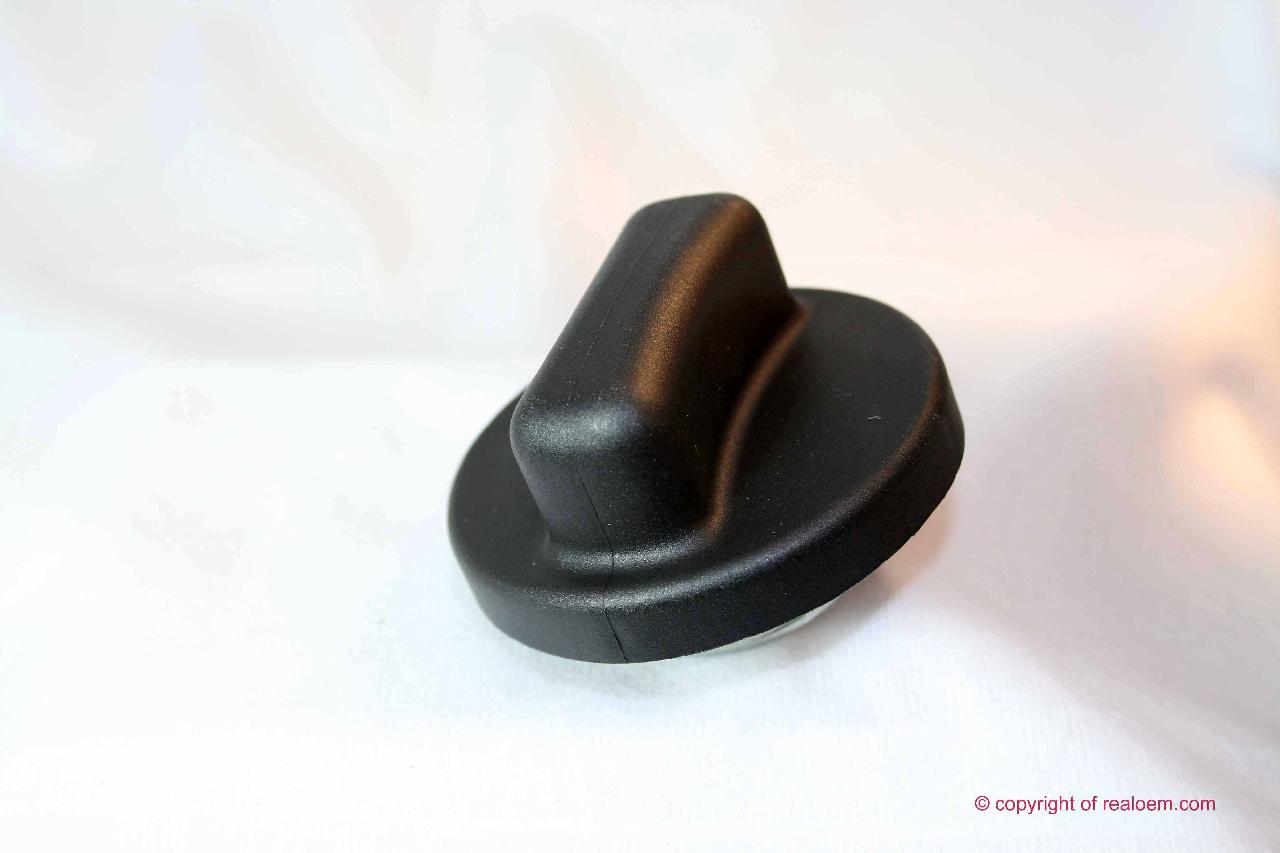

| 07 | Filler cap without lock | 1 | 16111184718 | $11.65 | Shop at ECS Tuning | |||||
| 09 | Bushing | 1 | 16114680130 | ENDED | Shop at ECS Tuning | |||||
| 12 | Gasket | SELBSTKLEBEND | 1 | 16111117053 | $17.96 | Shop at ECS Tuning | ||||
| 13 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M10X1 | 1 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||

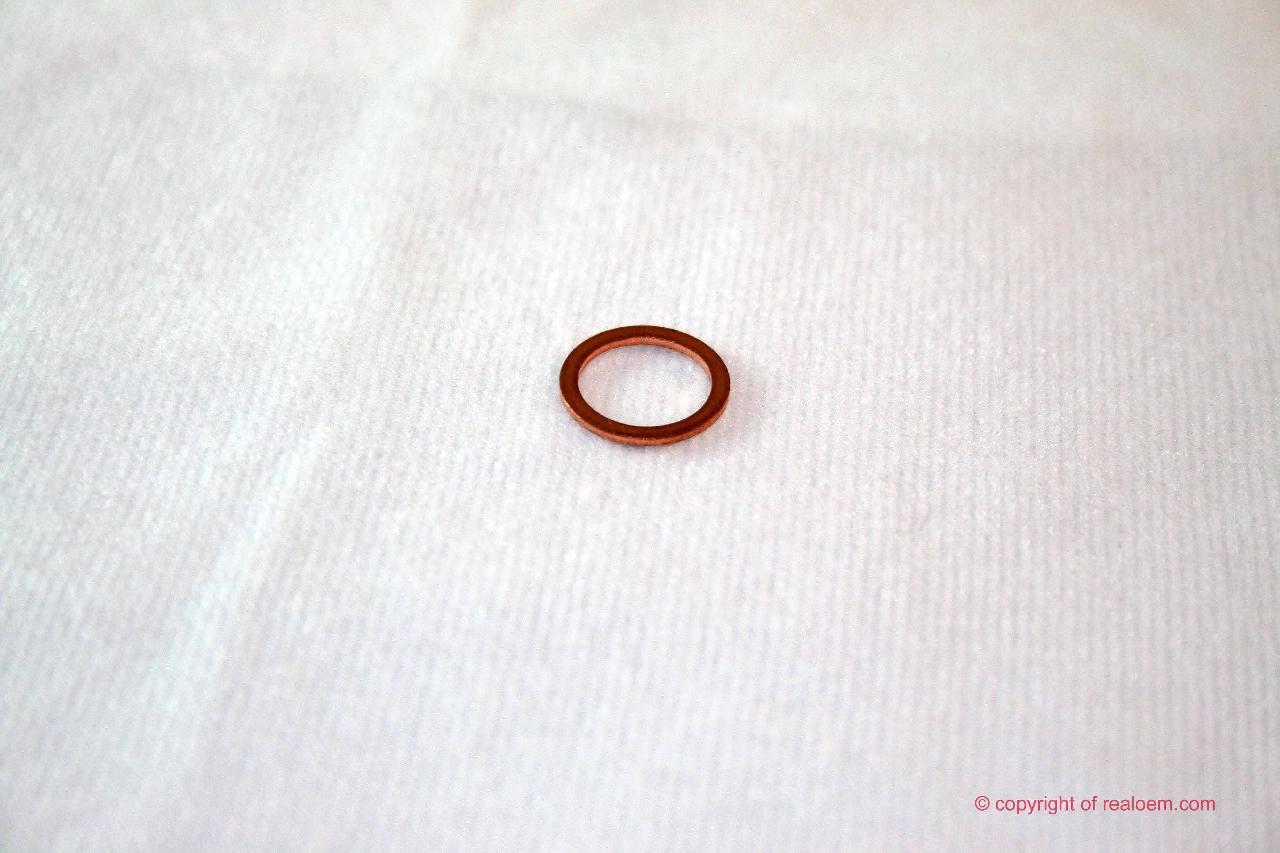

| 15 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Fuel pump/fuel filter?
- This technical diagram illustrates the Fuel pump/fuel filter within the Fuel Supply group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank (Part #16111107592).
- Which models use the hardware listed in this Fuel pump/fuel filter?
- The hardware and components featured in the Fuel pump/fuel filter are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Fuel tank (16111107592) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pump/fuel filter assembly?
- Each item in the Fuel pump/fuel filter corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Fuel tank by locating its position on the schematic, which then links to the official BMW part number 16111107592 for the Fuel Supply section.
